Product Information
| Sales# | IW816-8-14 |
| Manufacture# | WNIW-160080-088I9-014 |

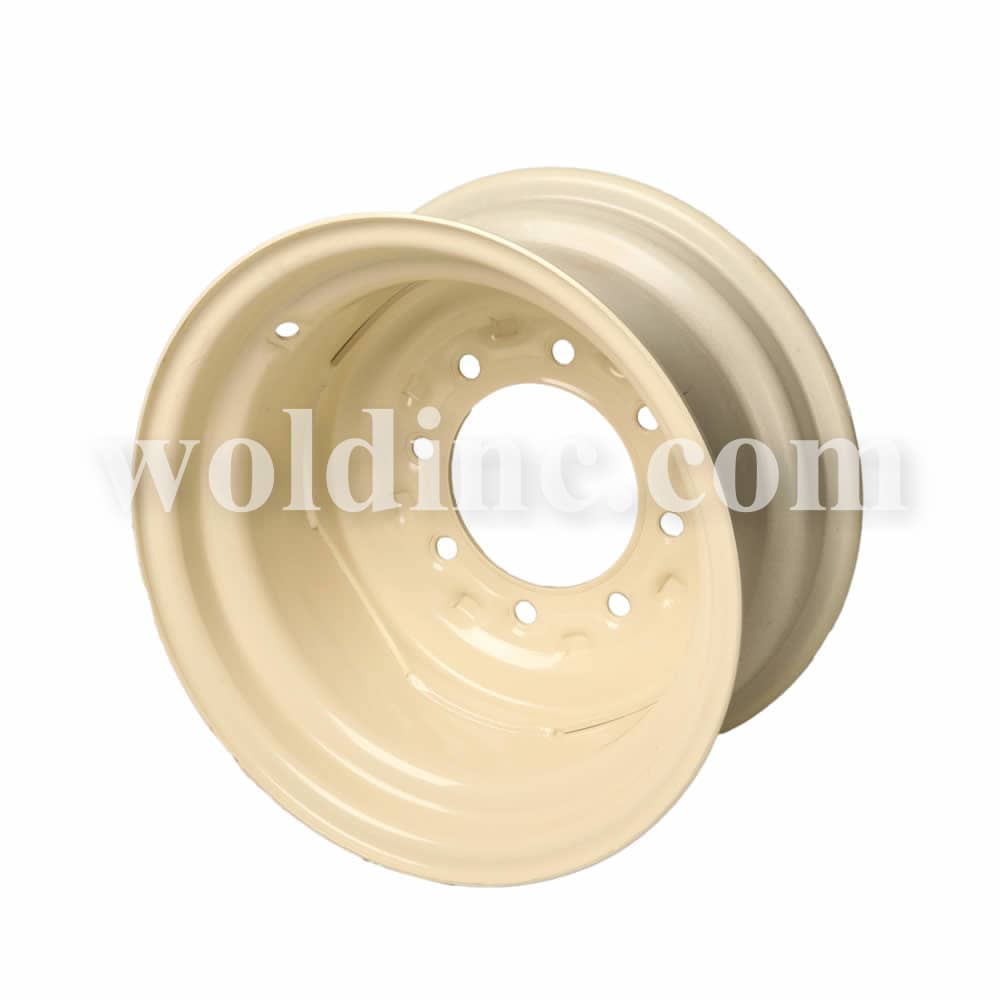

| Description | 8X16 8H AG IMPLEMENT WHEEL |
| Wheel size | 8" X 16" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

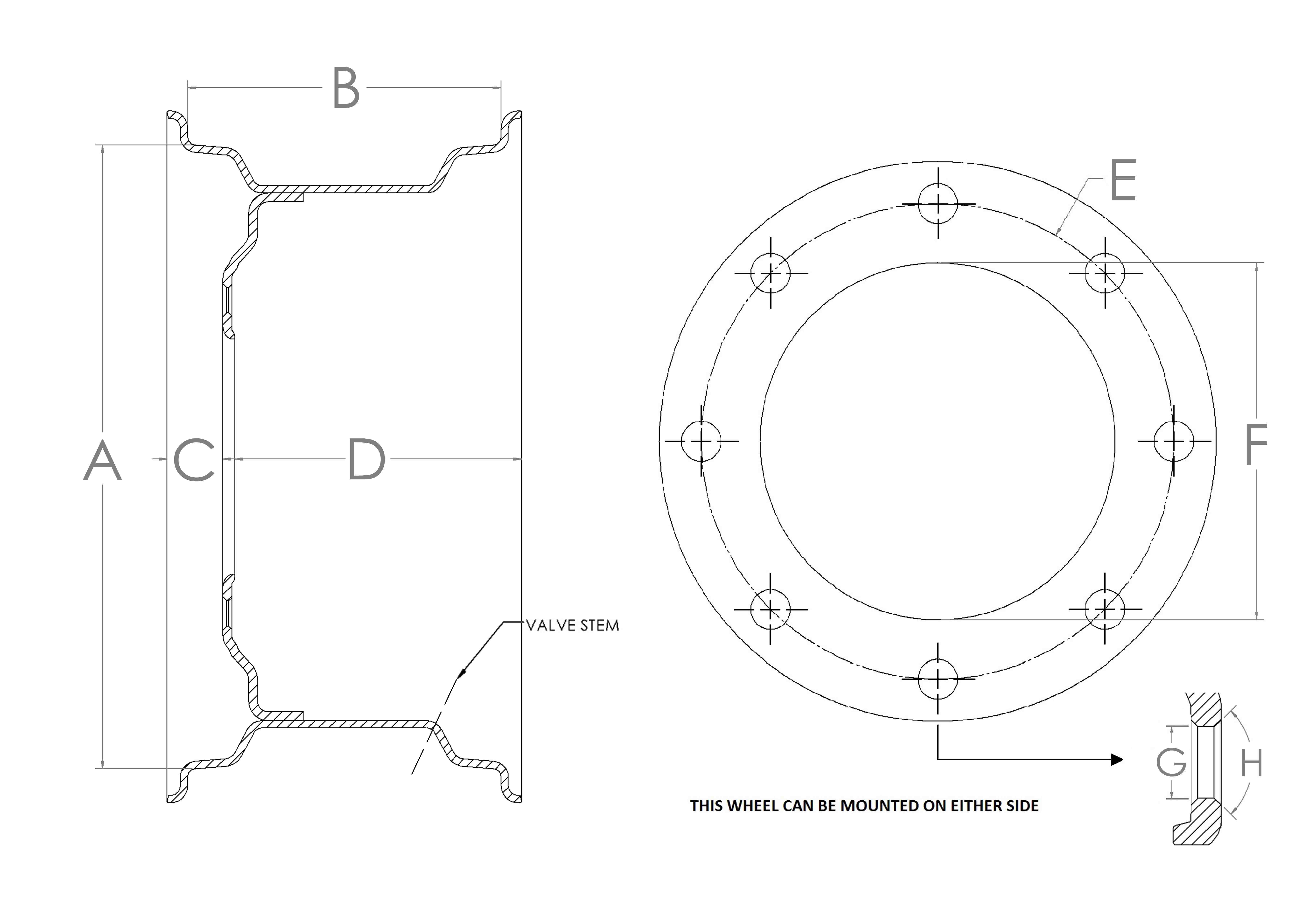

| (A) Dia. | 16" |
| (B) Width | 8" |
| Offset | 3 1/8" Negative |
| (C) Backside | 1 3/8" |
| (D) Frontside | 7 1/8" |
| Number Of Holes | 8 |
| (E) Bolt circle | 8" |
| (F) Pilot Hole | 6.03" |
| (G) Hole Size | 11/16" |
| (H) Countersink | 90 deg. |
| Cap | 5500 lbs. |
