Product Information
| Sales# | IW13225-8-66 |
| Manufacture# | WNIW-225160-088I9J-069 |
| Description | 16X22.5 8H AG IMPLEMENT WHEEL |
| Wheel size | 16" X 22.5" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

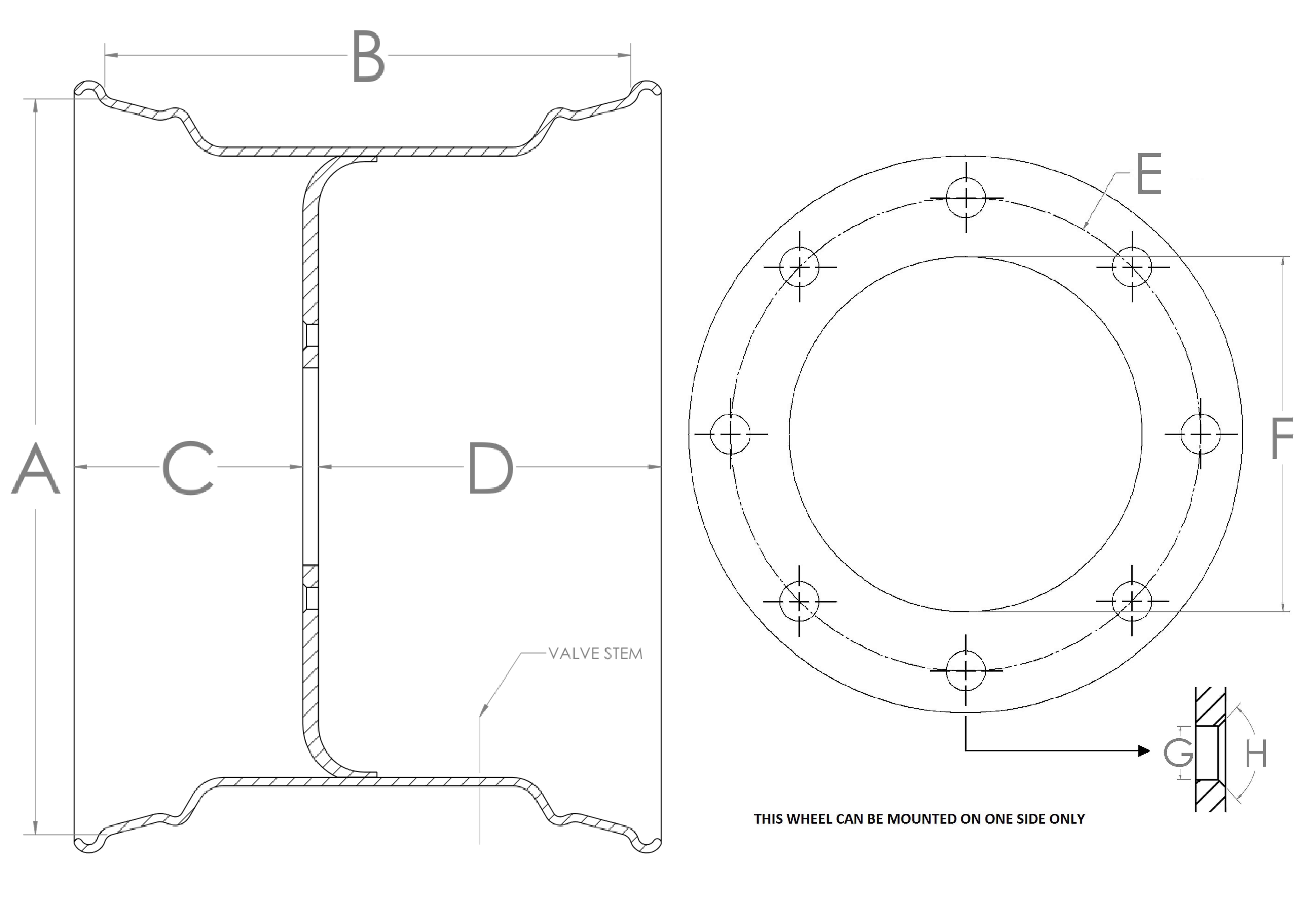

| (A) Dia. | 22.5" |
| (B) Width | 16" |
| Offset | 2" Negative |
| (C) Backside | 6 7/8" |
| (D) Frontside | 10 3/8" |
| Number Of Holes | 8 |
| (E) Bolt circle | 8" |
| (F) Pilot Hole | 6.03" |
| (G) Hole Size | 11/16" |
| (H) Countersink | 90 deg. |
| Cap | N/A |
