Product Information
| Sales# | NA |
| Manufacture# | WNIW-165097-088I9-059 |
| Description | 9.75 X16.5 8H AG IMPLEMENT WHEEL |
| Wheel size | 9.75" X 16.5" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

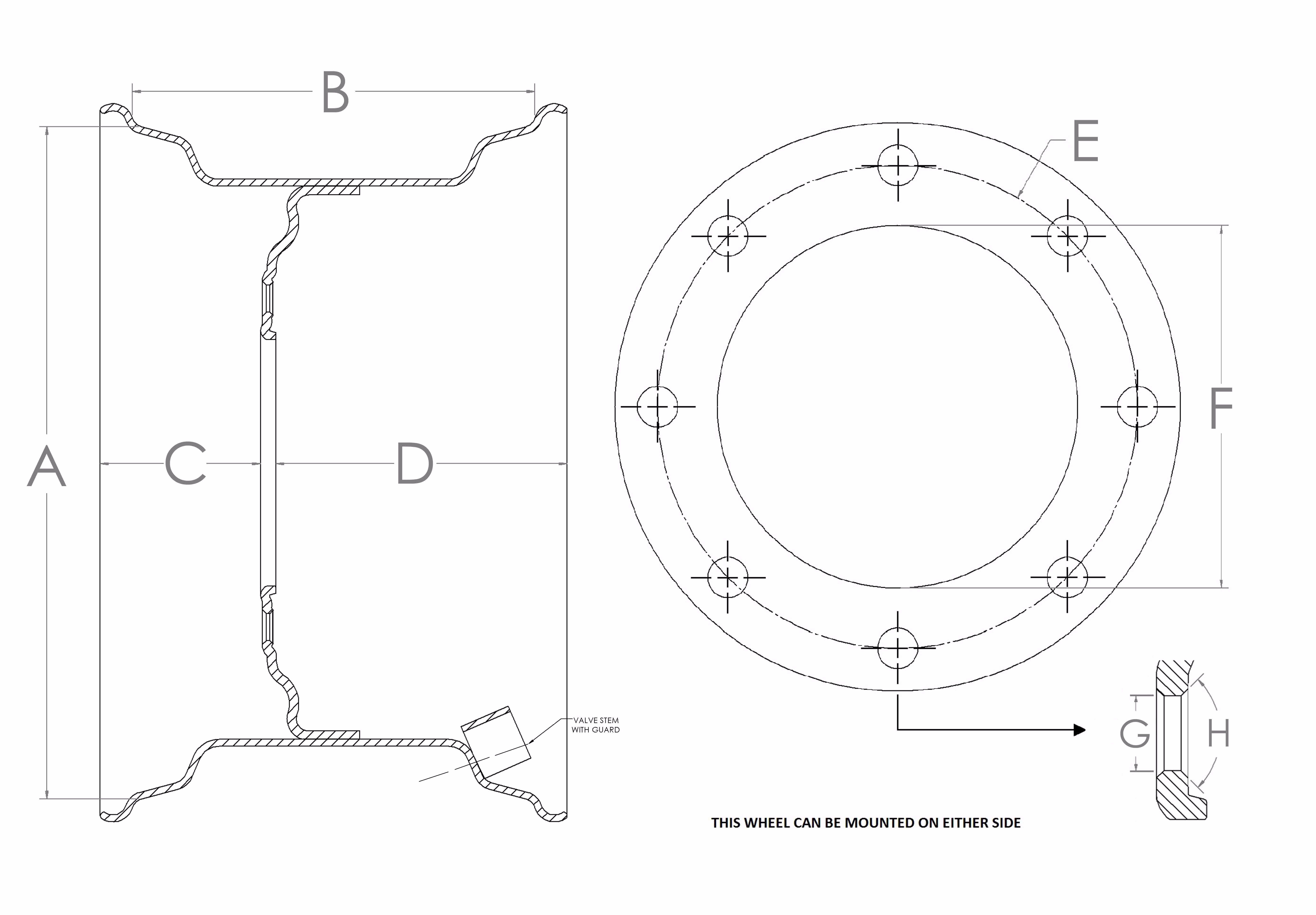

| (A) Dia. | 16.5" |
| (B) Width | 9.75" |
| Offset | 3/8" Positive |
| (C) Backside | 5 7/8" |
| (D) Frontside | 4 7/8" |
| Number Of Holes | 8 |
| (E) Bolt circle | 8" |
| (F) Pilot Hole | 6.03" |
| (G) Hole Size | 11/16" |
| (H) Countersink | 90 deg. |
| Cap | 6000 lbs. |
