Product Information
| Sales# | IW13225-10HP-74 |
| Manufacture# | WNIW-225160-10BMF1J-069 |

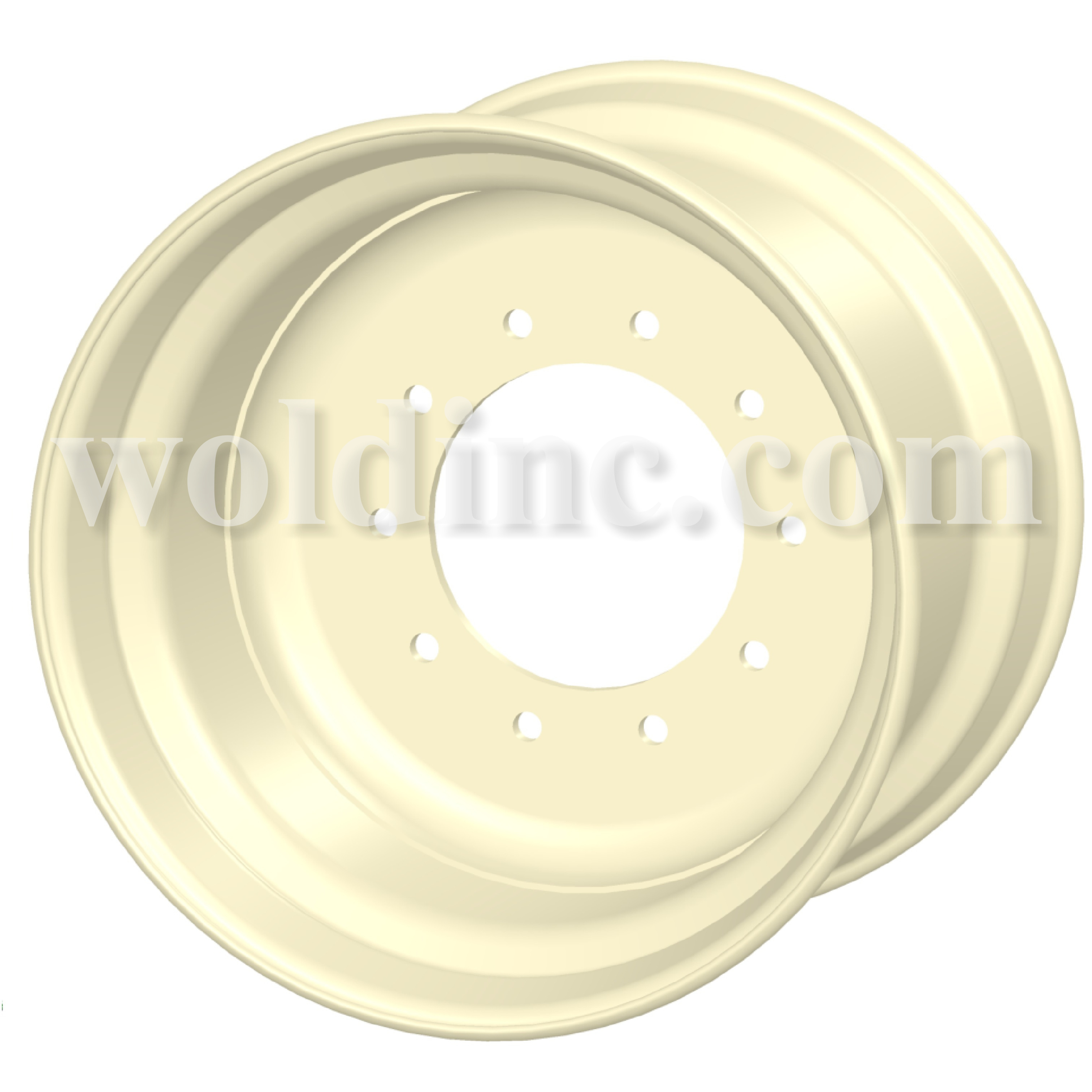

| Description | 16X22.5 W/1/2" 10H PLATE |
| Wheel size | 16" X 22.5" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

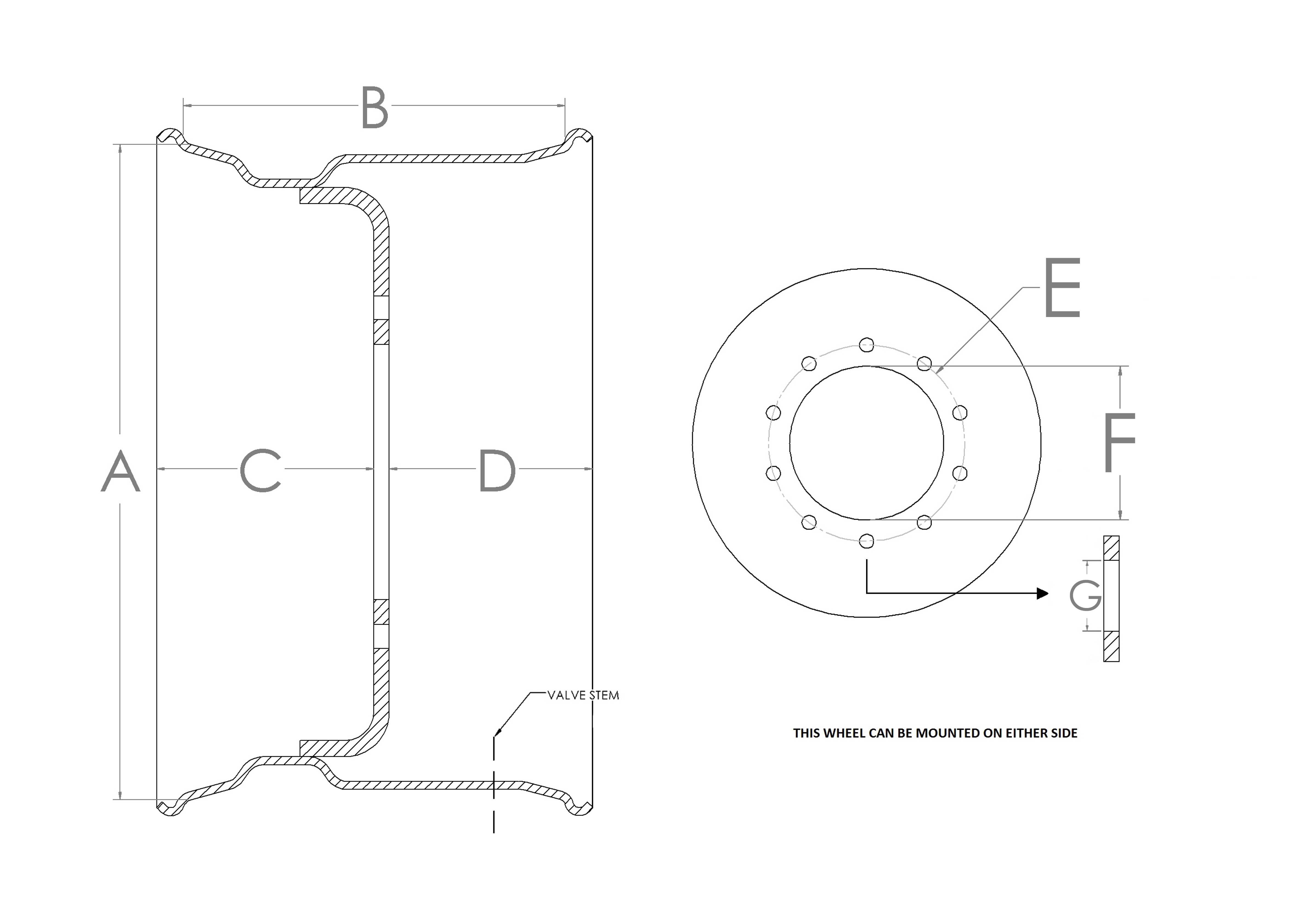

| (A) Dia. | 22.5" |
| (B) Width | 16" |
| Offset | 1 7/8" NEGATIVE |
| (C) Backside | 6 7/8" |
| (D) Frontside | 10 3/8" |
| Number Of Holes | 10 |
| (E) Bolt circle | 11.25" |
| (F) Pilot Hole | 8.72" |
| (G) Hole Size | 13/16" |
| (H) Countersink | No |
| Cap | N/A |
