Product Information
| Sales# | IW13225-10HP-74 |
| Manufacture# | WNIW-225130-10BMF1J-074 |

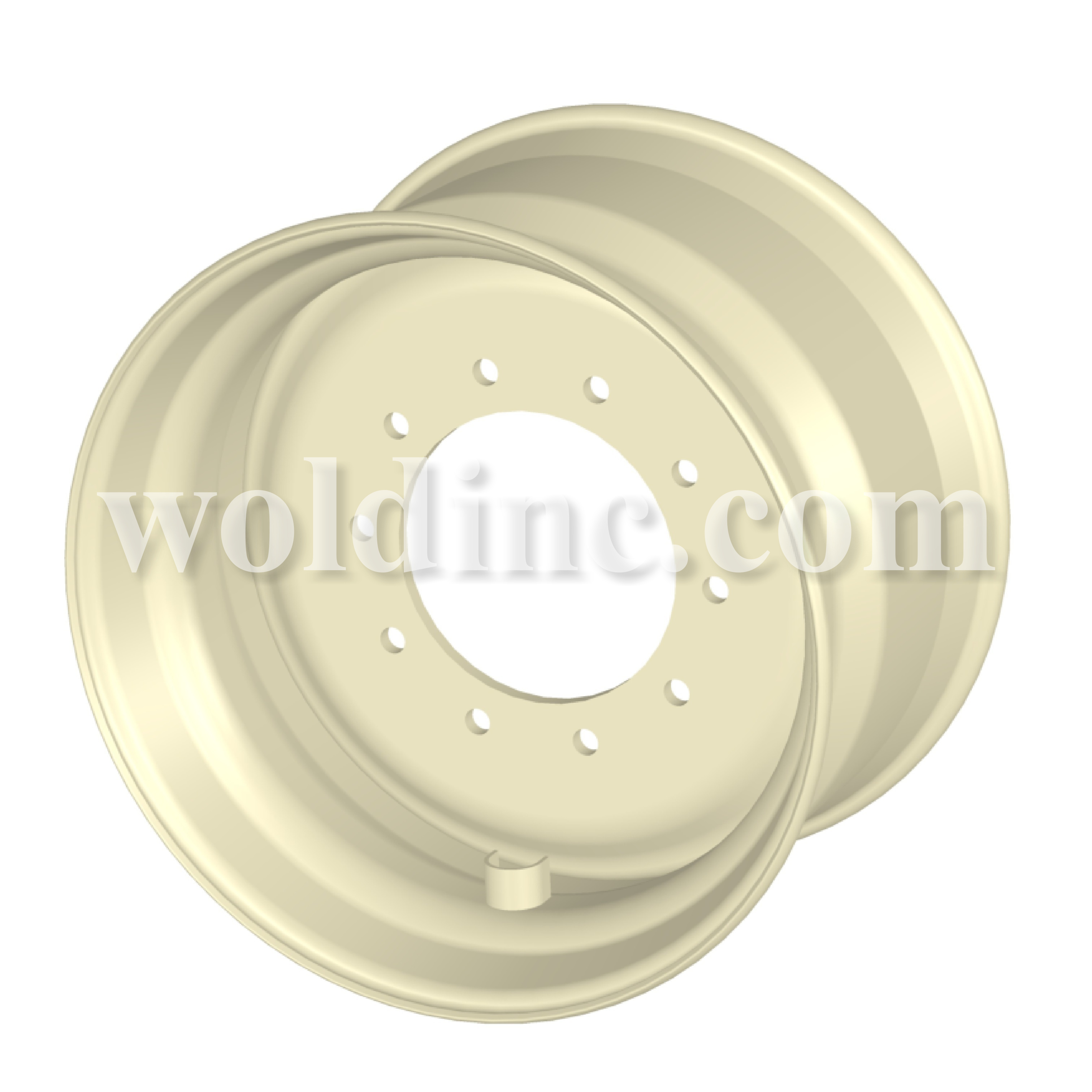

| Description | 13X22.5 W/1/2" 10H PLATE |
| Wheel size | 13" X 22.5" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

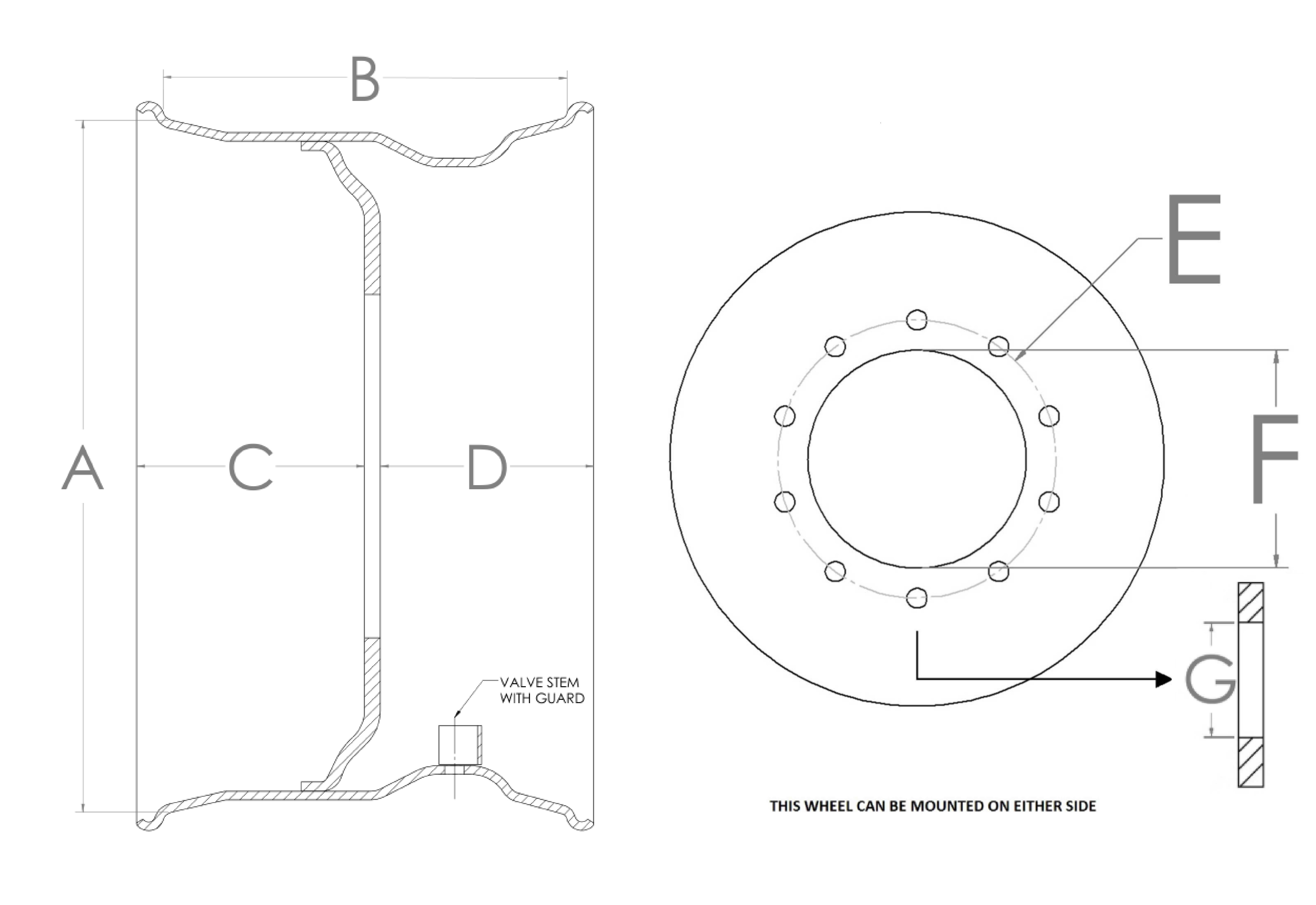

| (A) Dia. | 22.5" |
| (B) Width | 13" |
| Offset | 0" |
| (C) Backside | 7 3/8" |
| (D) Frontside | 6 7/8" |
| Number Of Holes | 10 |
| (E) Bolt circle | 11.25" |
| (F) Pilot Hole | 8.83" |
| (G) Hole Size | 13/16" |
| (H) Countersink | No |
| Cap | 10000 lbs. |
