Product Information
| Sales# | IW105175-8-52 |
| Manufacture# | WNIW-175105-088I9H-052 |
| Description | 10.5X17.5 8H SKIDLOADER RIM |
| Wheel size | 10.5" X 17.5" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

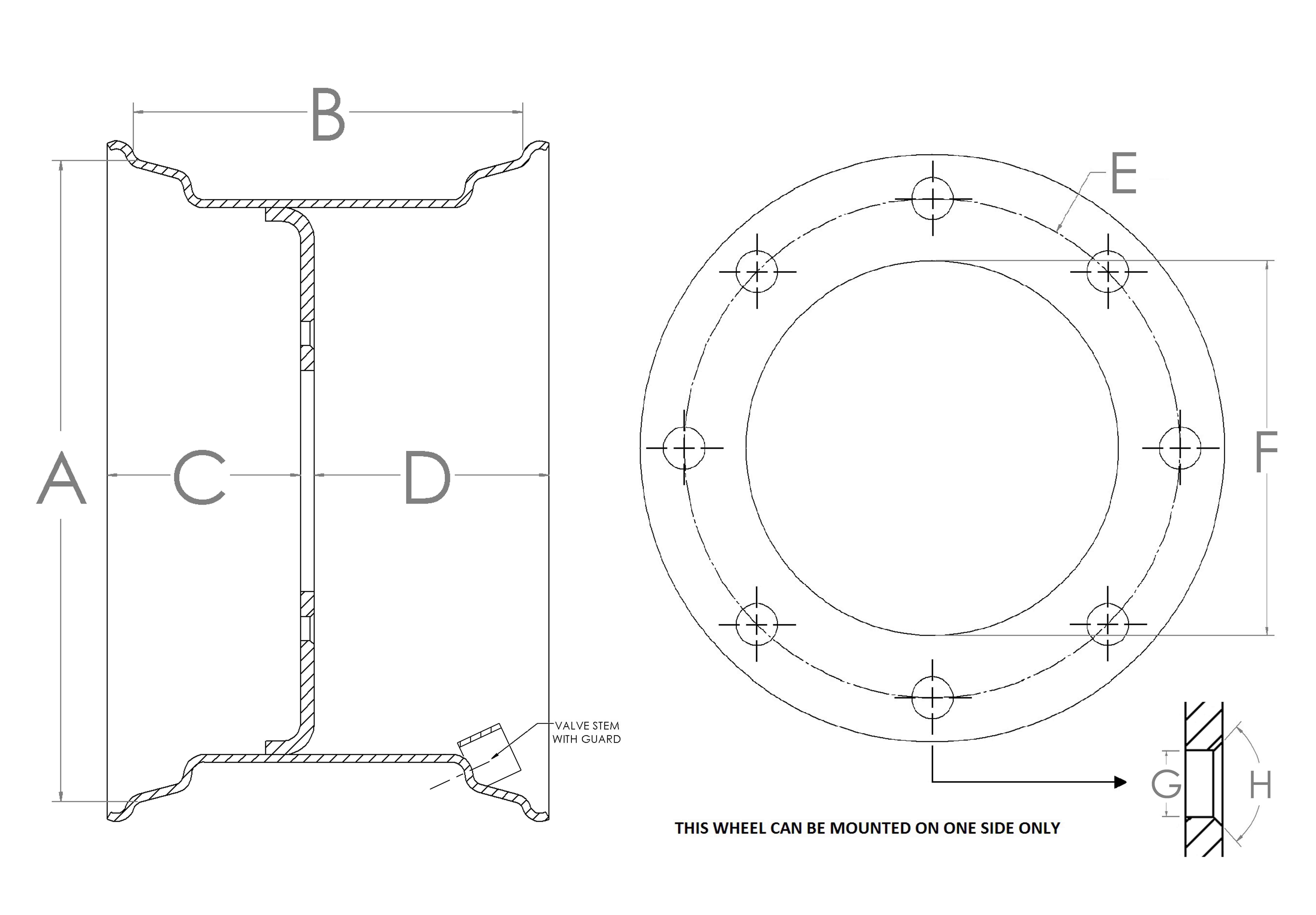

| (A) Dia. | 17.5" |
| (B) Width | 10.5" |
| Offset | 3/4" Negative |
| (C) Backside | 5 1/4" |
| (D) Frontside | 5 7/8" |
| Number Of Holes | 8 |
| (E) Bolt circle | 8" |
| (F) Pilot Hole | 6.03" |
| (G) Hole Size | 11/16" |
| (H) Countersink | 90 deg. |
| Cap | 7500 lbs. |
