Product Information
| Sales# | N/A |
| Manufacture# | WNIW-165097-08AI91-071 |
| Description | 9.75X16.5 8H SKIDLOADER RIM |
| Wheel size | 9.75" X 16.5" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

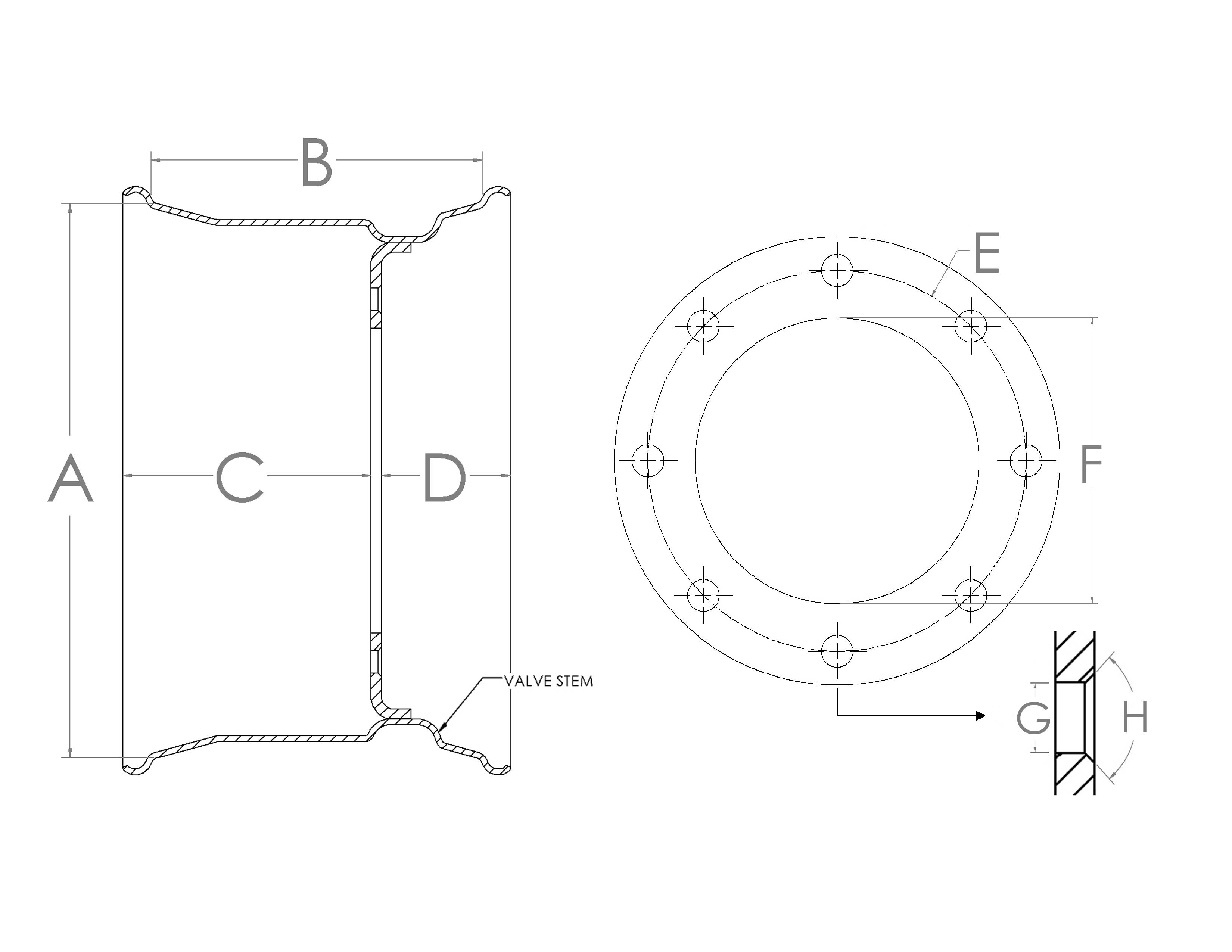

| (A) Dia. | 16.5" |
| (B) Width | 9.75" |
| Offset | 1 5/8" Positive |
| (C) Backside | 7 1/8" |
| (D) Frontside | 3 5/8" |
| Number Of Holes | 8 |
| (E) Bolt circle | 10.75" |
| (F) Pilot Hole | 9.04" |
| (G) Hole Size | 11/16" |
| (H) Countersink | 90 deg. |
| Cap | 6000 lbs. |
