Product Information
| Sales# | N/A |
| Manufacture# | WPFD-12Q-380120-WL12IQF-285 |
| Description | (22MM) NS FWA DUAL(30") |
| Wheel size | 12"X38" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

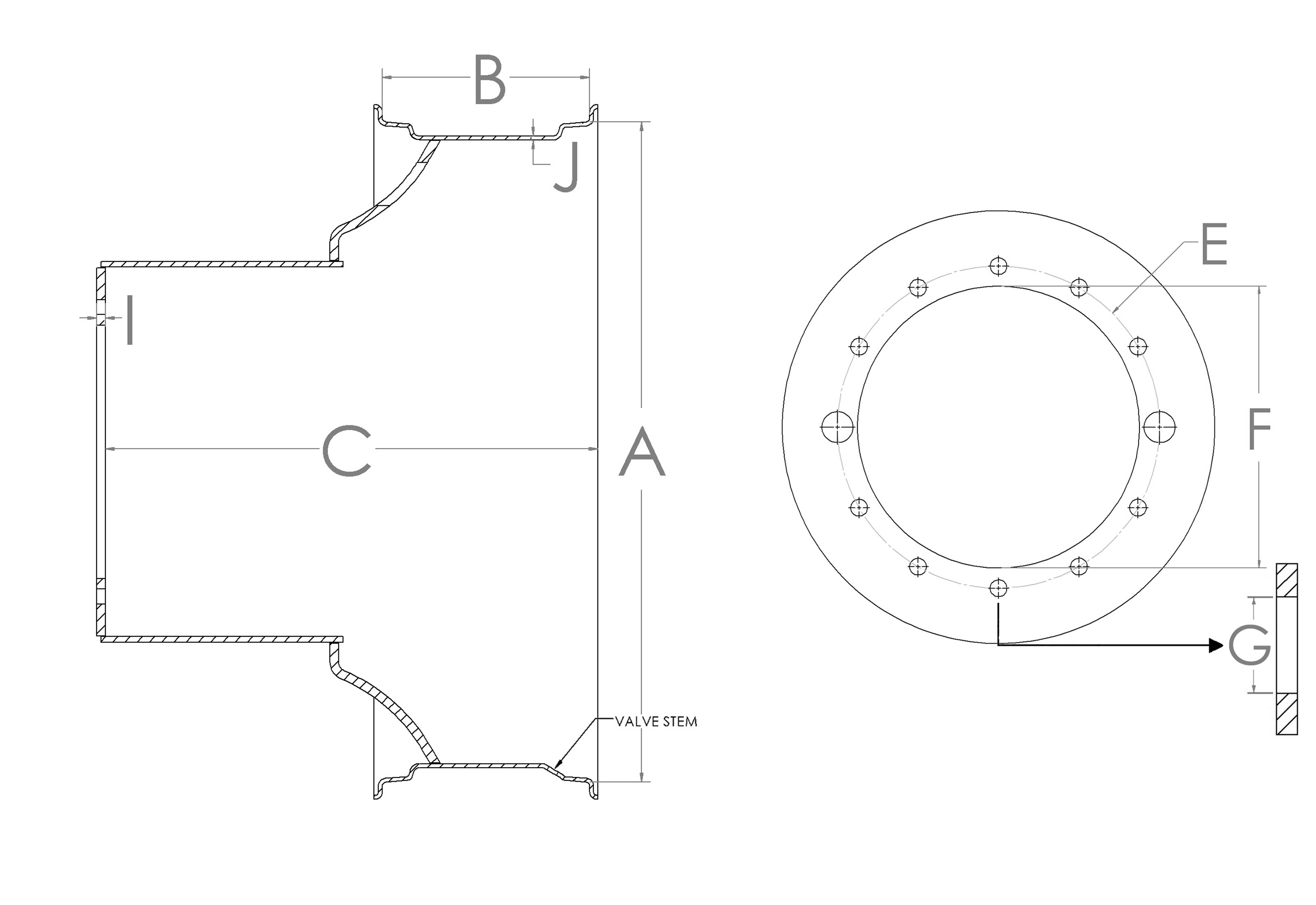

| (A) Dia. | 38" |
| (B) Width | 12" |
| Offset | 22 1/2" |
| (C) Frontside | 28 1/2" |
| Number Of Holes | 12 |
| (E) Bolt Circle | 16.75" |
| (F) Pilot Hole | 14.63" |
| (G) Hole Size | 15/16" |
| (J) Rim | .224" |
| (I) Center | 1/2" |
