Product Information
| Sales# | N/A |
| Manufacture# | WNCD-088I9-06RIFG-040 |

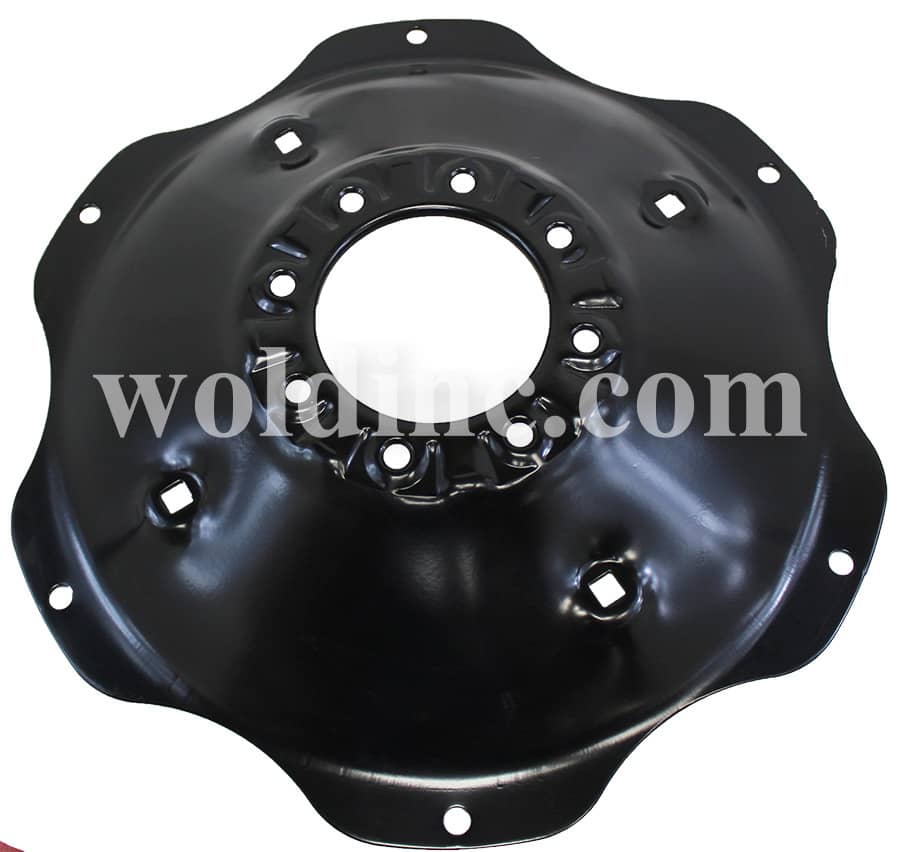

| Description | 8H AG 28" 6 CLAMP CD |
| Size | For 28" 6 Clamp wheel (24.25" BC) |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

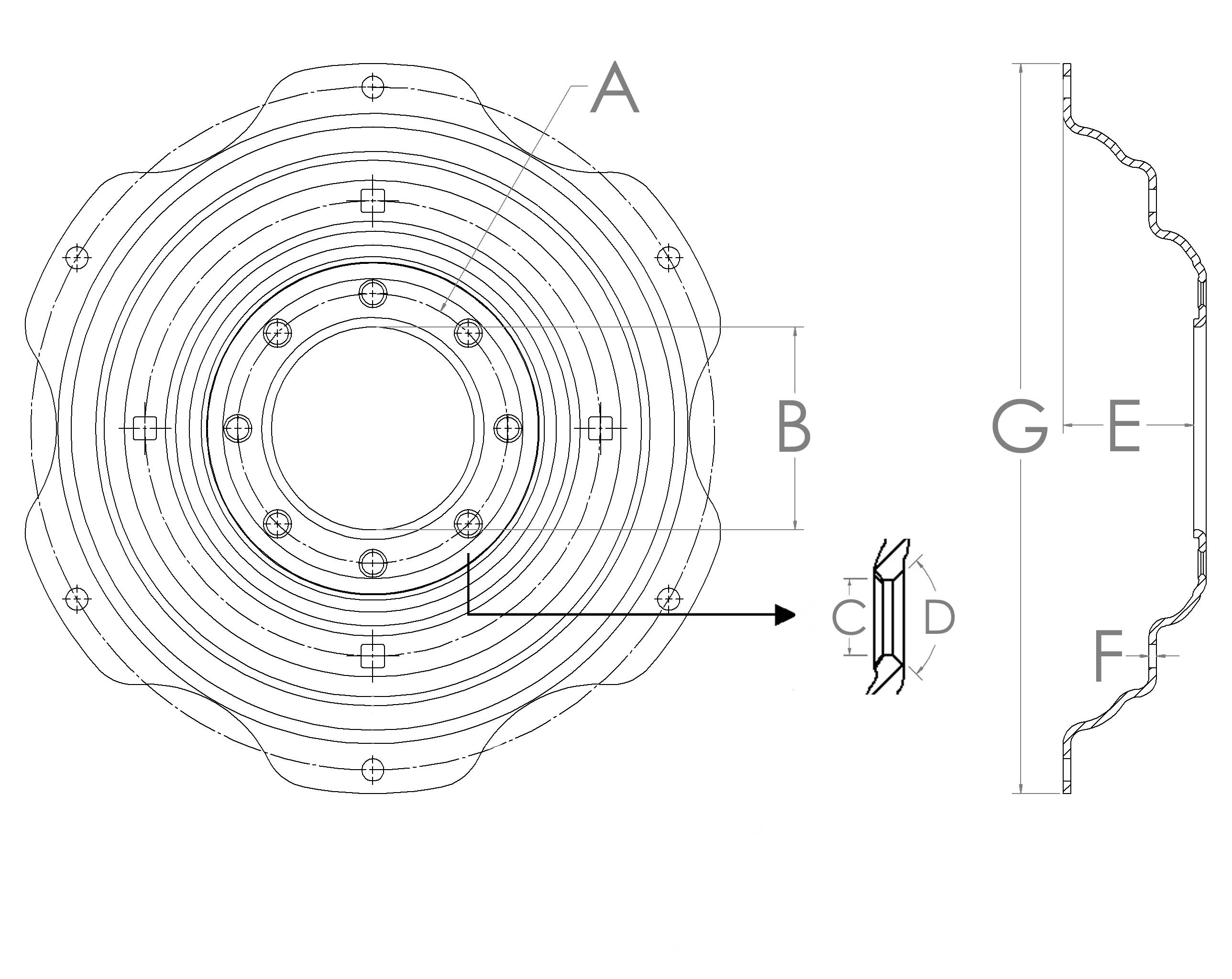

| Number Of Holes | 8 |
| (A) Bolt circle | 8" |
| (B) Pilot Hole | 6.03" |
| (C) Hole Size | 21/32" |
| (D) Countersink | 90 deg. |
| (E) Offset | 4" |
| (F) Center | 5/16" |
| (G) Dia. | 25.625" |
