Product Information
| Sales# | N/A |
| Manufacture# | WNCD-088IF-08IIF3-040 |
| Description | 8H AG (11/16") 24" WAFFLE CENTER |
| Size | For 24" Waffle wheel (19.25" BC) |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

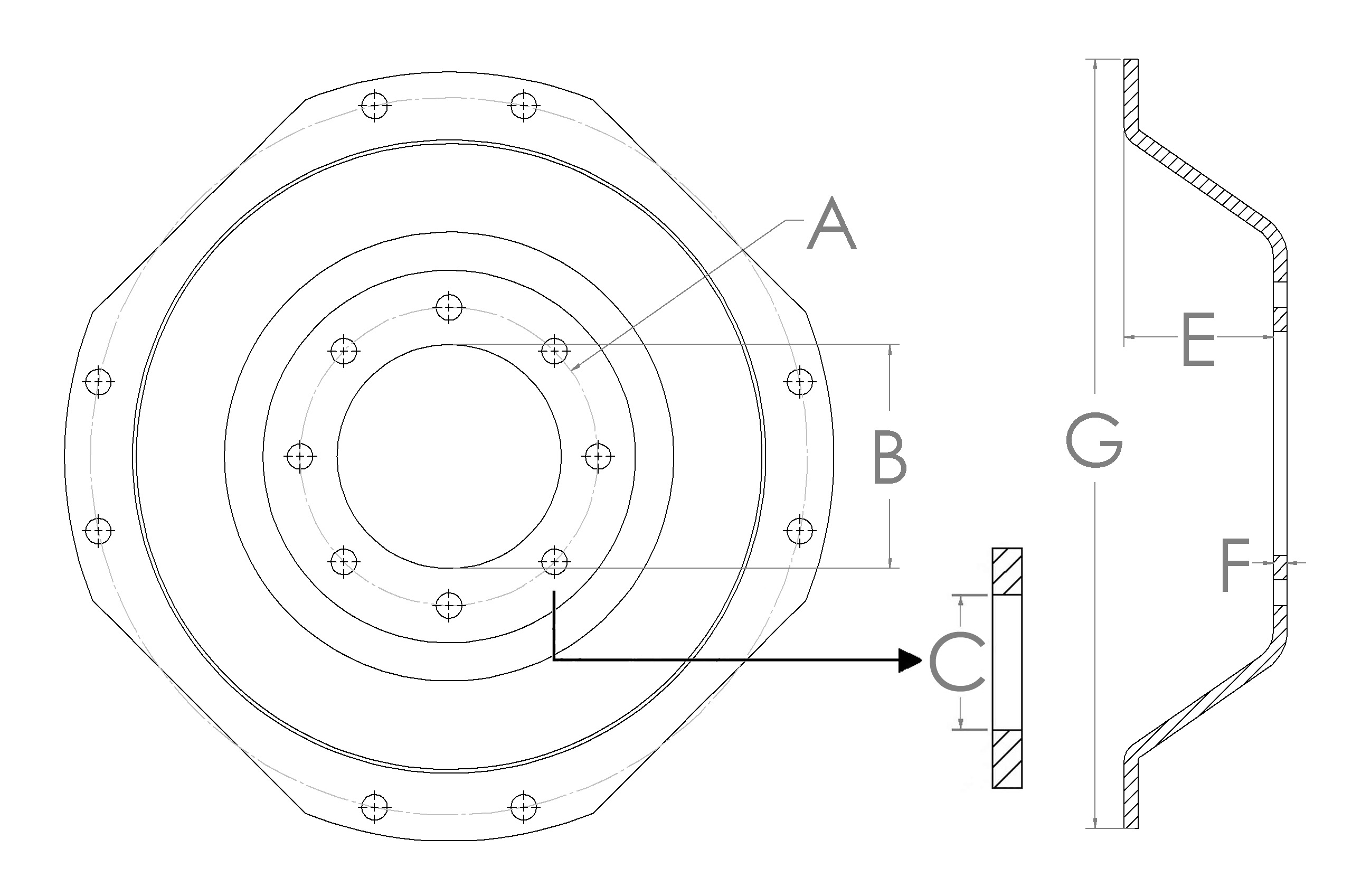

| Number Of Holes | 8 |
| (A) Bolt circle | 8" |
| (B) Pilot Hole | 6.03" |
| (C) Hole Size | 11/16" |
| (D) Countersink | No |
| (E) Offset | 4" |
| (F) Center | 3/8" |
| (G) Dia. | 20.625" |
