Product Information
| Sales# | N/A |
| Manufacture# | WNCD-10DPF-12PIFH-040 |
| Description | 10H AG (29/32") 28/30" WAFFLE CENTER |
| Size | For 28/30" Waffle wheel (23.25" BC) |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

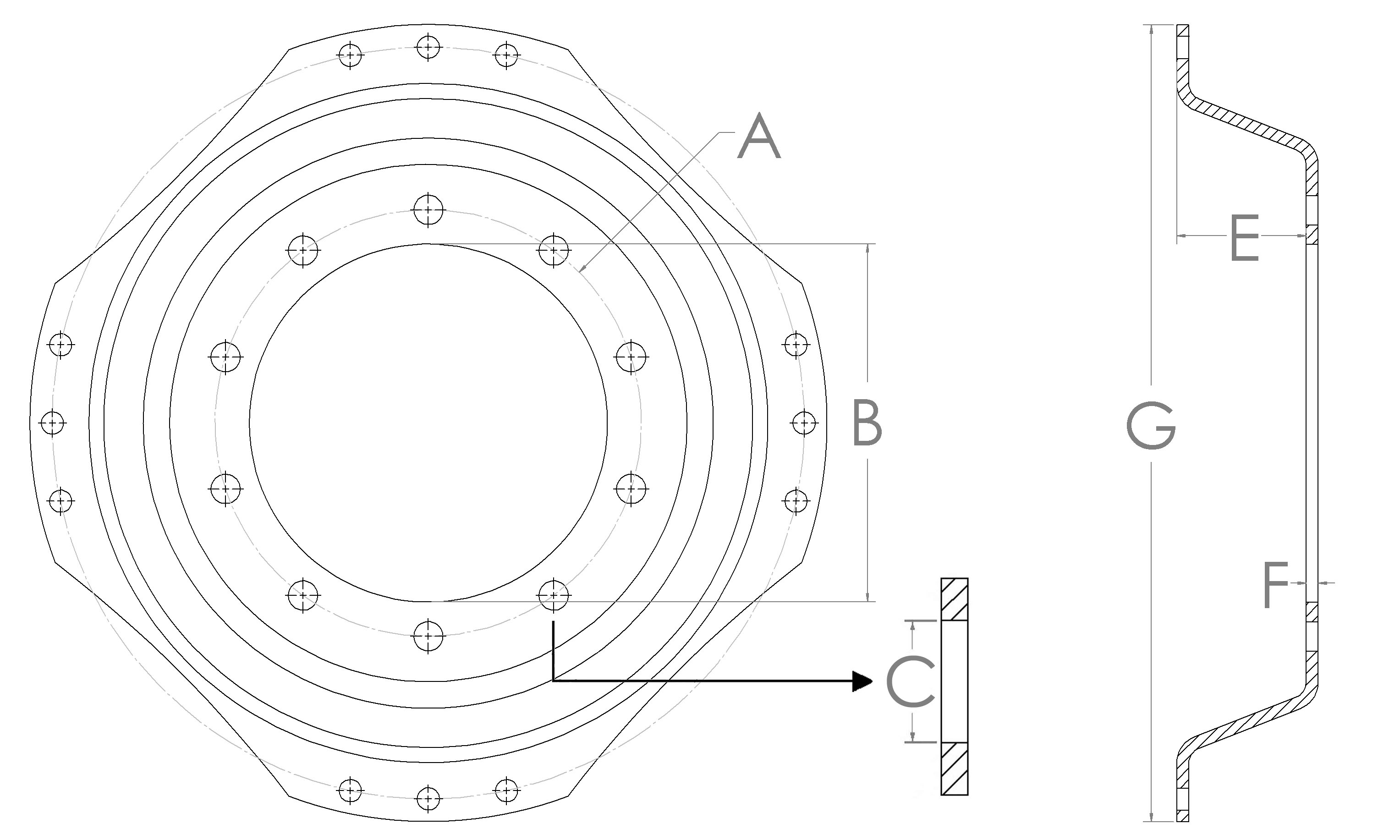

| Number Of Holes | 10 |
| (A) Bolt circle | 13.187" |
| (B) Pilot Hole | 11.11" |
| (C) Hole Size | 29/32" |
| (D) Countersink | No |
| (E) Offset | 4" |
| (F) Center | 3/8" |
| (G) Dia. | 24.625" |
