Product Information
| Sales# | na |
| Manufacture# | WPCD-08GIF1-12UIFH-040 |
| Description | 8H 15.945"BC 34" WAFFLE CENTER |
| Size | For 34" Waffle wheel (23.25" BC) |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

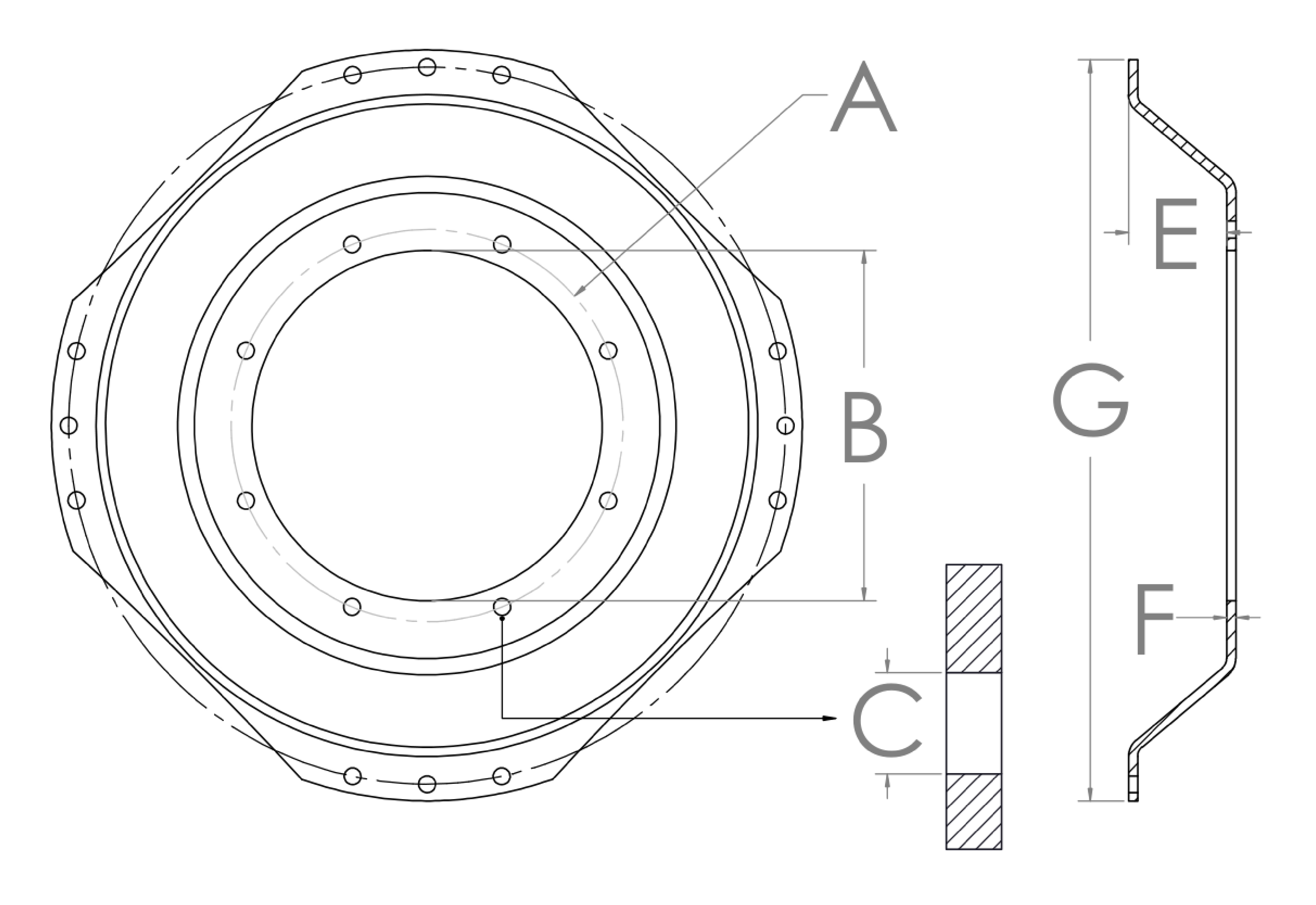

| Number Of Holes | 8 |
| (A) Bolt circle | 15.945" |
| (B) Pilot Hole | 14.290" |
| (C) Hole Size | 11/16" |
| Countersink | No |
| (E) Offset | 4" |
| (F) Center | 3/8" |
| (G) Dia. | 30 5/8" |
