Product Information
| Sales# | N/A |
| Manufacture# | WNCD-088NF1-12XIF6LI-040 |
| Description | 8H AG (5.53"PH) 38" WAFFLE CENTER |
| Size | For 38" Waffle wheel (33.25" BC) |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

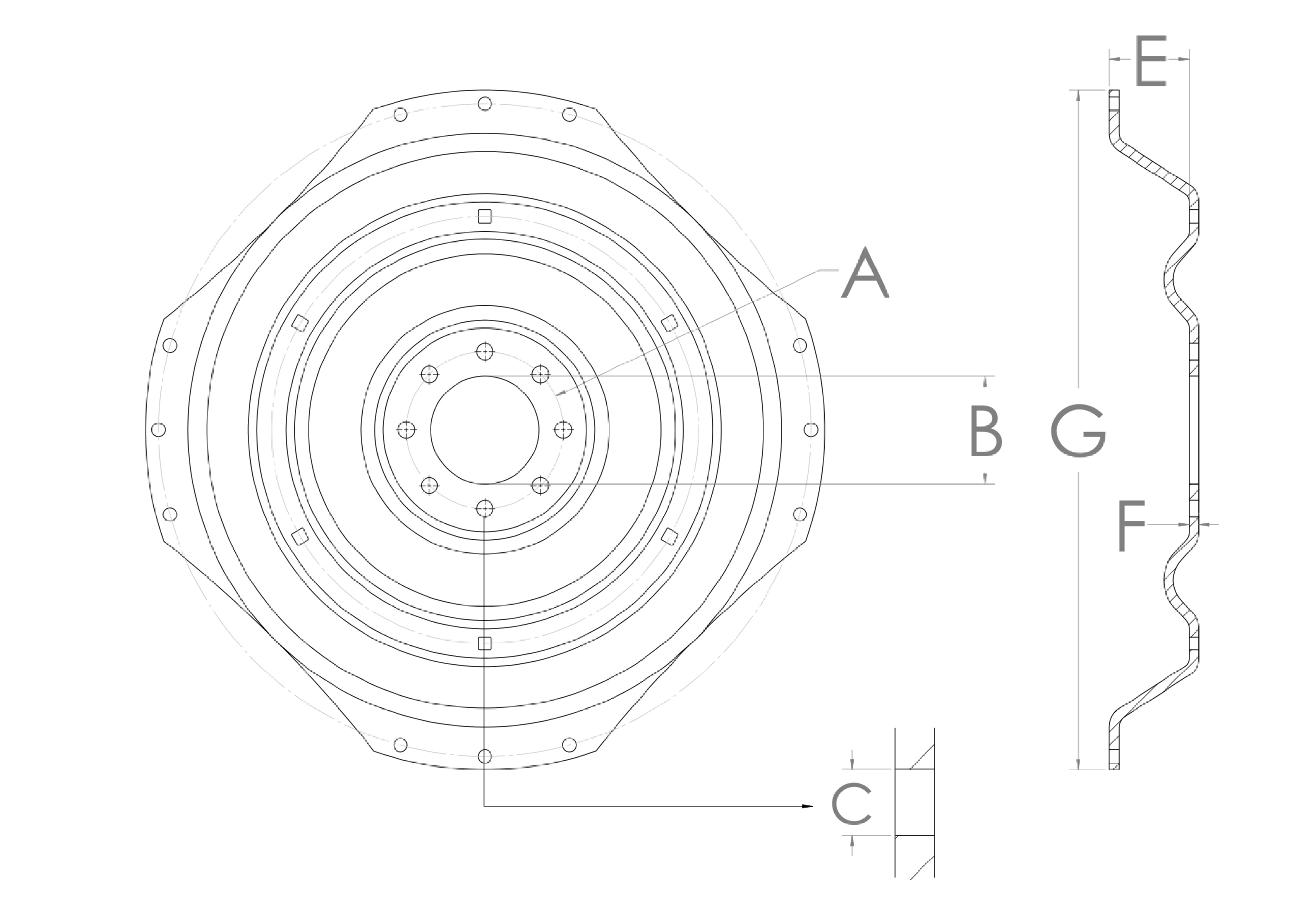

| Number Of Holes | 8 |
| (A) Bolt circle | 8" |
| (B) Pilot Hole | 5.53" |
| (C) Hole Size | 27/32" |
| (D) Countersink | No |
| (E) Offset | 4" |
| (F) Center | 1/2" |
| (G) Dia. | 34.625" |
