Product Information
| Sales# | N/A |
| Manufacture# | WNDW-10-460160-10DQF6KJ-175 |
| Description | 16X46 10H 1/2" FORMED W/H DUAL (FLUSH) |
| Wheel size | 16"X46" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

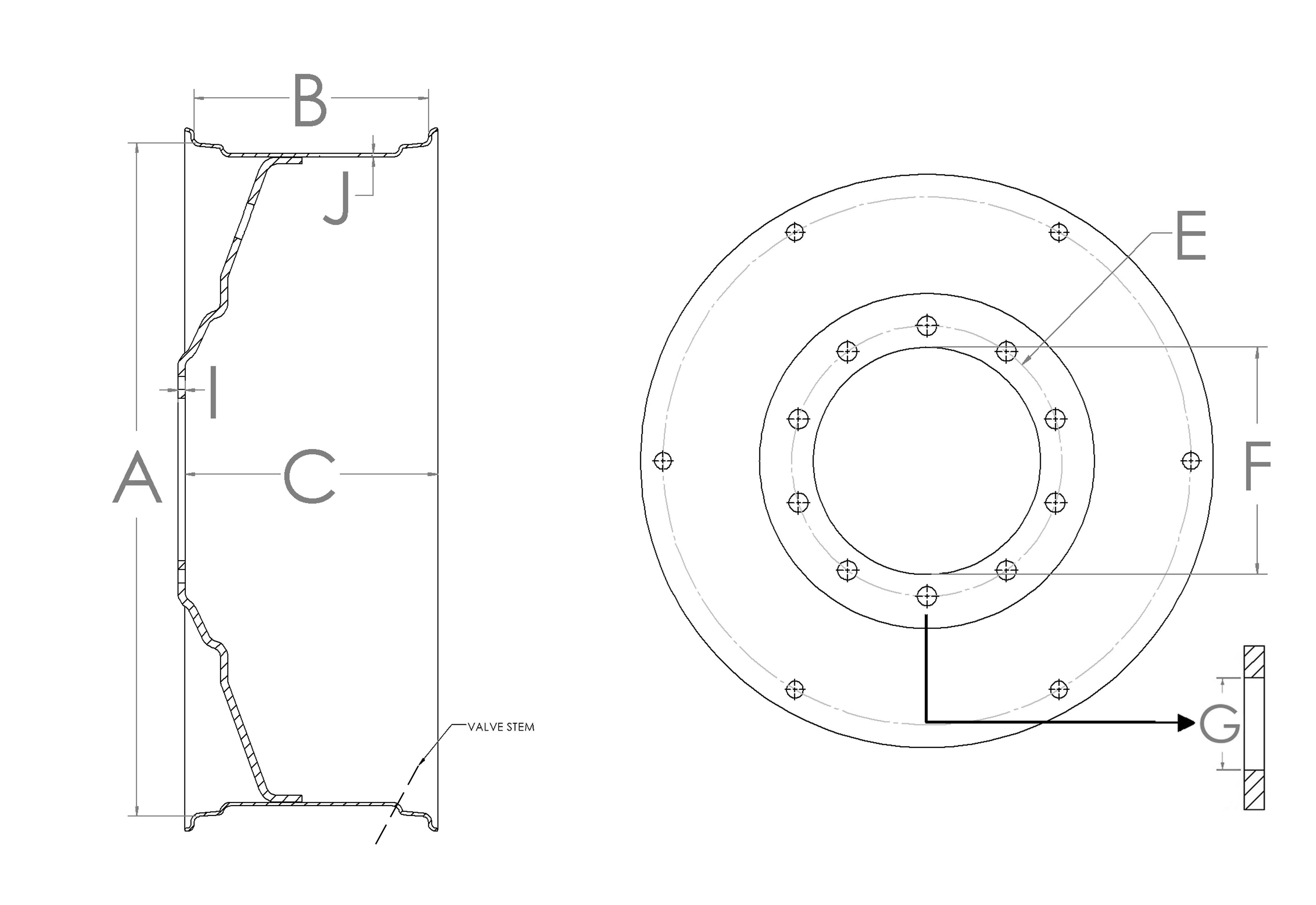

| (A) Dia. | 46" |
| (B) Width | 16" |
| Offset | 9 1/8" |
| (C) Frontside | 17 1/2" |
| Number Of Holes | 10 |
| (E) Bolt circle | 13.187" |
| (F) Pilot Hole | 11.080" |
| (G) Hole Size | 15/16" |
| (J) Rim | .224" |
| (I) Center | .500" |
