Product Information
| Sales# | N/A |
| Manufacture# | WPDW-09-380100-BR099I9-107 |
| Description | 10X38 9H 3/8" PRESSED CENTER W/RR |
| Wheel size | 10"X38" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

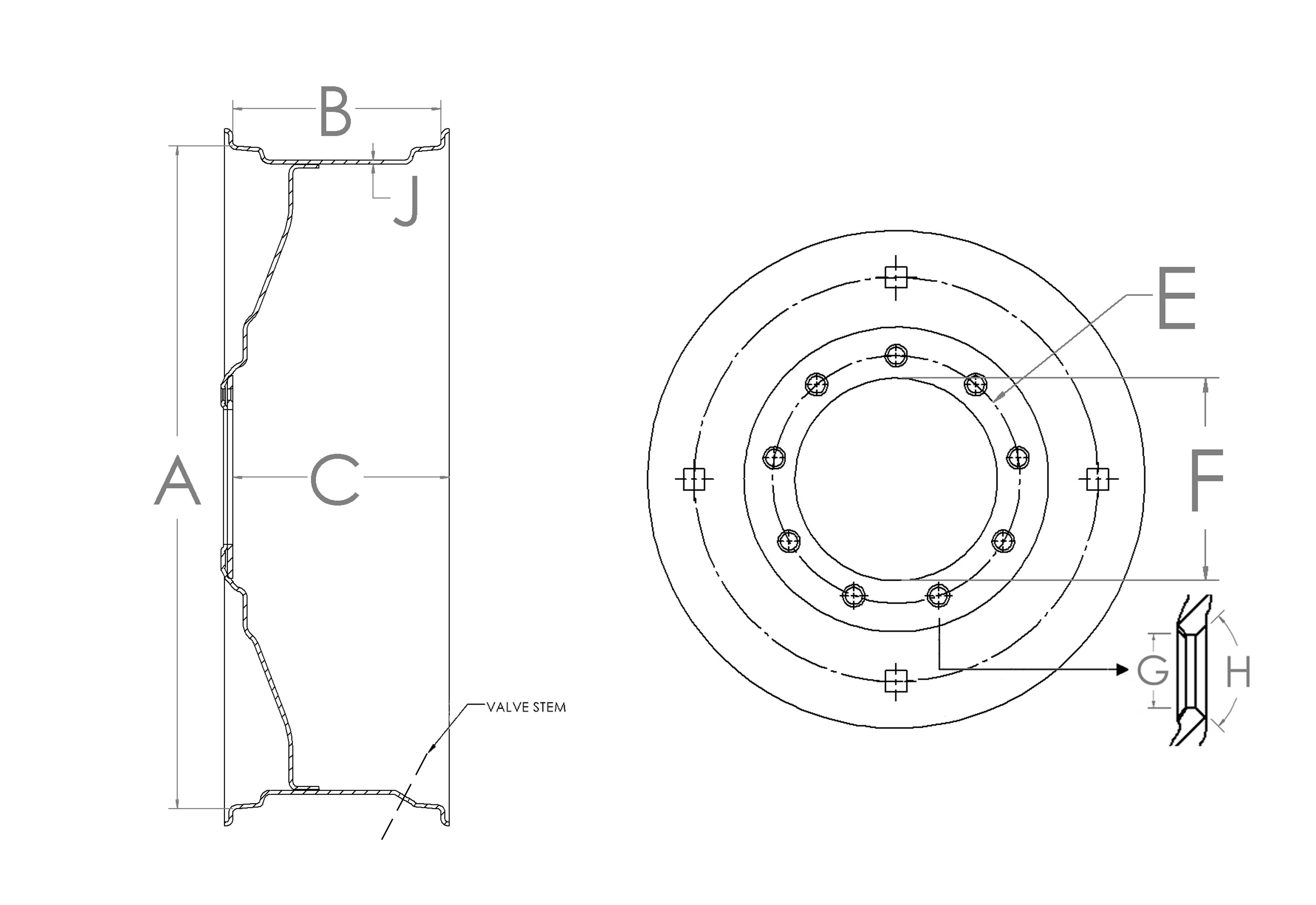

| (A) Dia. | 38" |
| (B) Width | 10" |
| Offset | 5 7/8" |
| (C) Frontside | 10 3/4" |
| Number Of Holes | 9 |
| (E) Bolt circle | 9.50" |
| (F) Pilot Hole | 7.77" |
| (G) Hole Size | 11/16" |
| (H) Countersink | 90 Deg. |
| (J) Rim | .187" |
| Center | .375" |
