Product Information
| Sales# | N/A |
| Manufacture# | WPDW-09-340160-J099I9-160 |
| Description | 16X34 9H 1/2" FORMED CENTER DUAL |
| Wheel size | 16"X34" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

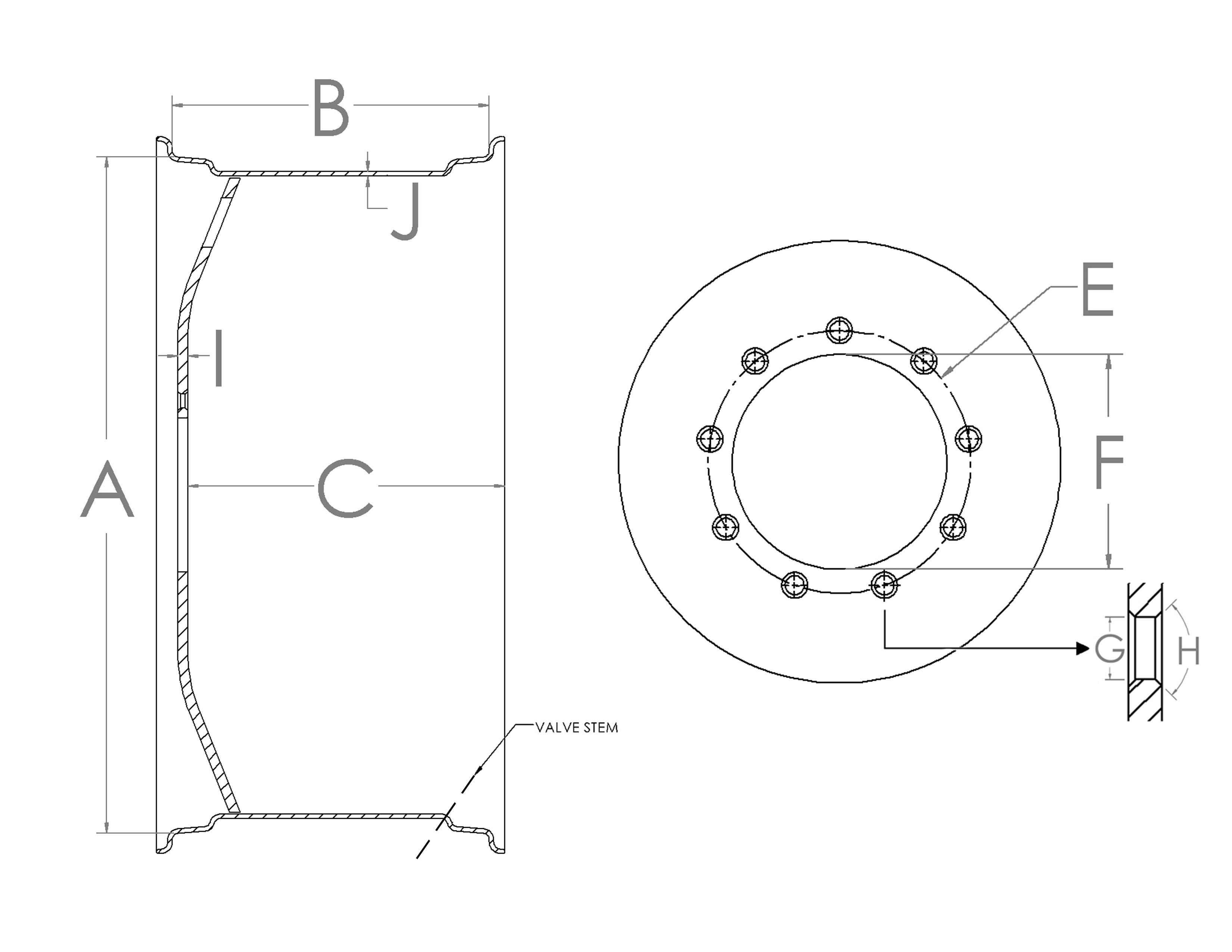

| (A) Dia. | 34" |
| (B) Width | 16" |
| Offset | 7 13/16" |
| (C) Frontside | 16" |
| Number Of Holes | 9 |
| (E) Bolt circle | 9.50" |
| (F) Pilot Hole | 7.77" |
| (G) Hole Size | 11/16" |
| (H) Countersink | 90 Deg. |
| (J) Rim | .229" |
| (I) Center | .500" |
