Product Information
| Sales# | N/A |
| Manufacture# | WPCW-300150H-08APFJ-129 |
| Description | 15X30 8H JD (10.826"BC) 1/2" FORMED CENTER |
| Wheel size | 15"X30" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

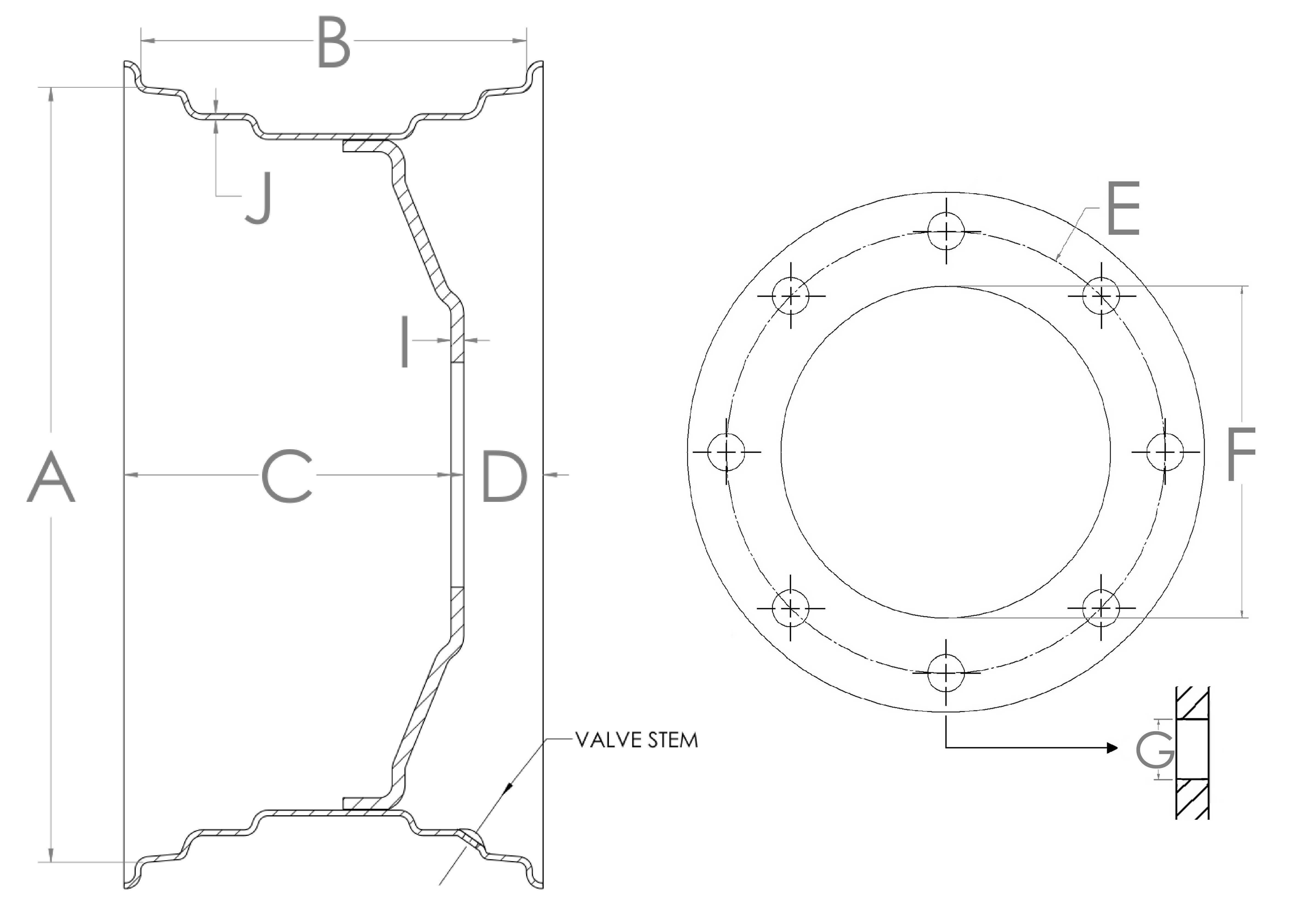

| (A) Dia. | 30" |
| (B) Width | 15" |
| Offset | 4 1/2" Pos. |
| (C) Backside | 12 7/8" |
| (D) Frontside | 3 1/8" |
| Number Of Holes | 8 |
| (E) Bolt circle | 10.826" |
| (F) Pilot Hole | 8.72" |
| (G) Hole Size | 29/32" |
| (H) Countersink | No |
| (J) Rim | .224" |
| (I) Center | 1/2" |
