Product Information
| Sales# | N/A |
| Manufacture# | WPCW-300300-10DPFJ-116 |
| Description | 30X30 10H AG (20/22MM) 1/2" FORMED CENTER |
| Wheel size | 30"X30" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

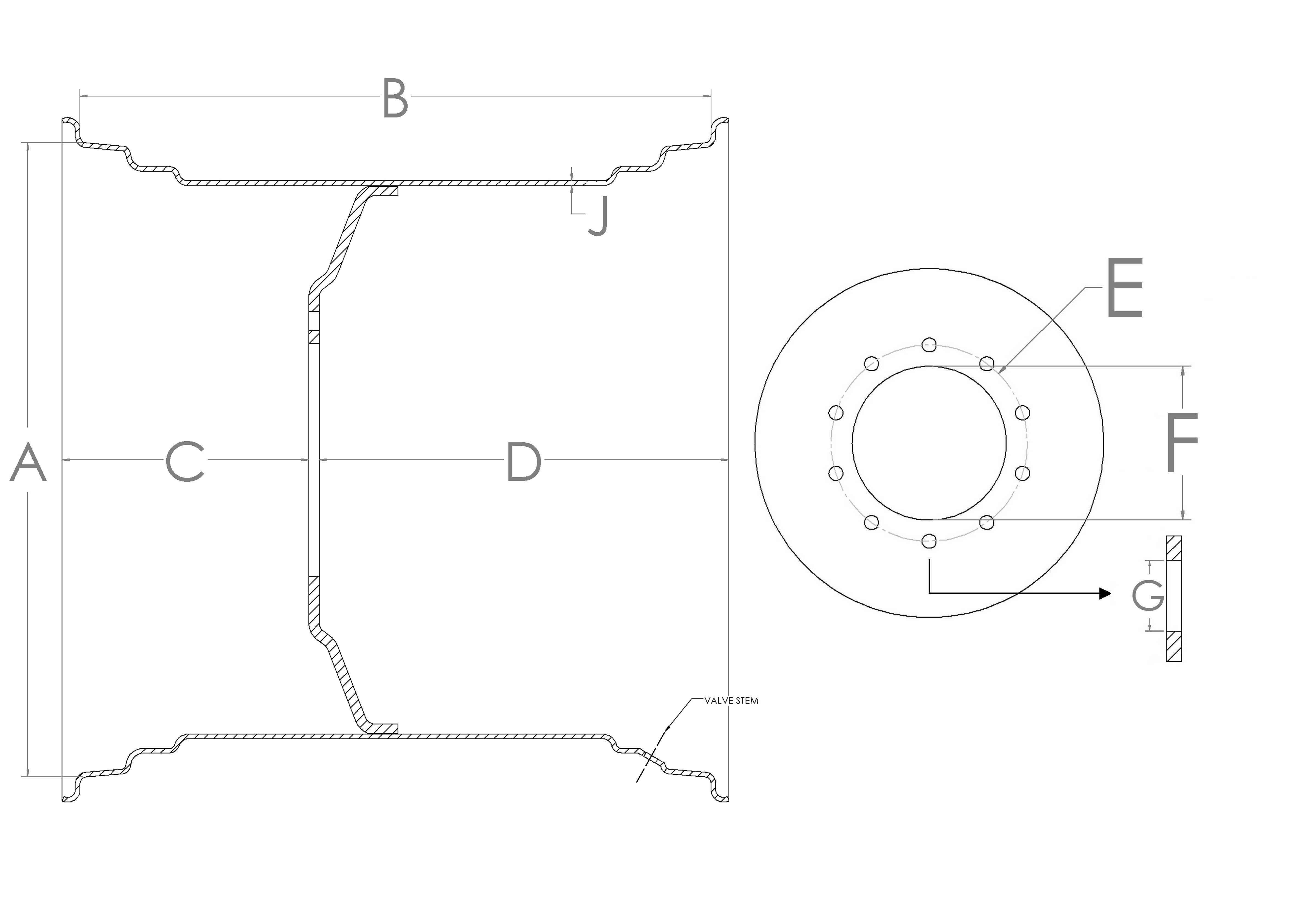

| (A) Dia. | 30" |
| (B) Width | 30" |
| Offset | 4 1/8" Negative |
| (C) Backside | 11 3/4" |
| (D) Frontside | 19 1/2" |
| Number Of Holes | 10 |
| (E) Bolt circle | 13.187" |
| (F) Pilot Hole | 11.08" |
| (G) Hole Size | .906" |
| (H) Countersink | No |
| (J) Rim | .224" |
