Product Information
| Sales# | N/A |
| Manufacture# | WPPW-300160-J088I9-110 |
| Description | 16X30 8H AG 1/2" FORMED CENTER |
| Wheel size | 16"X30" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

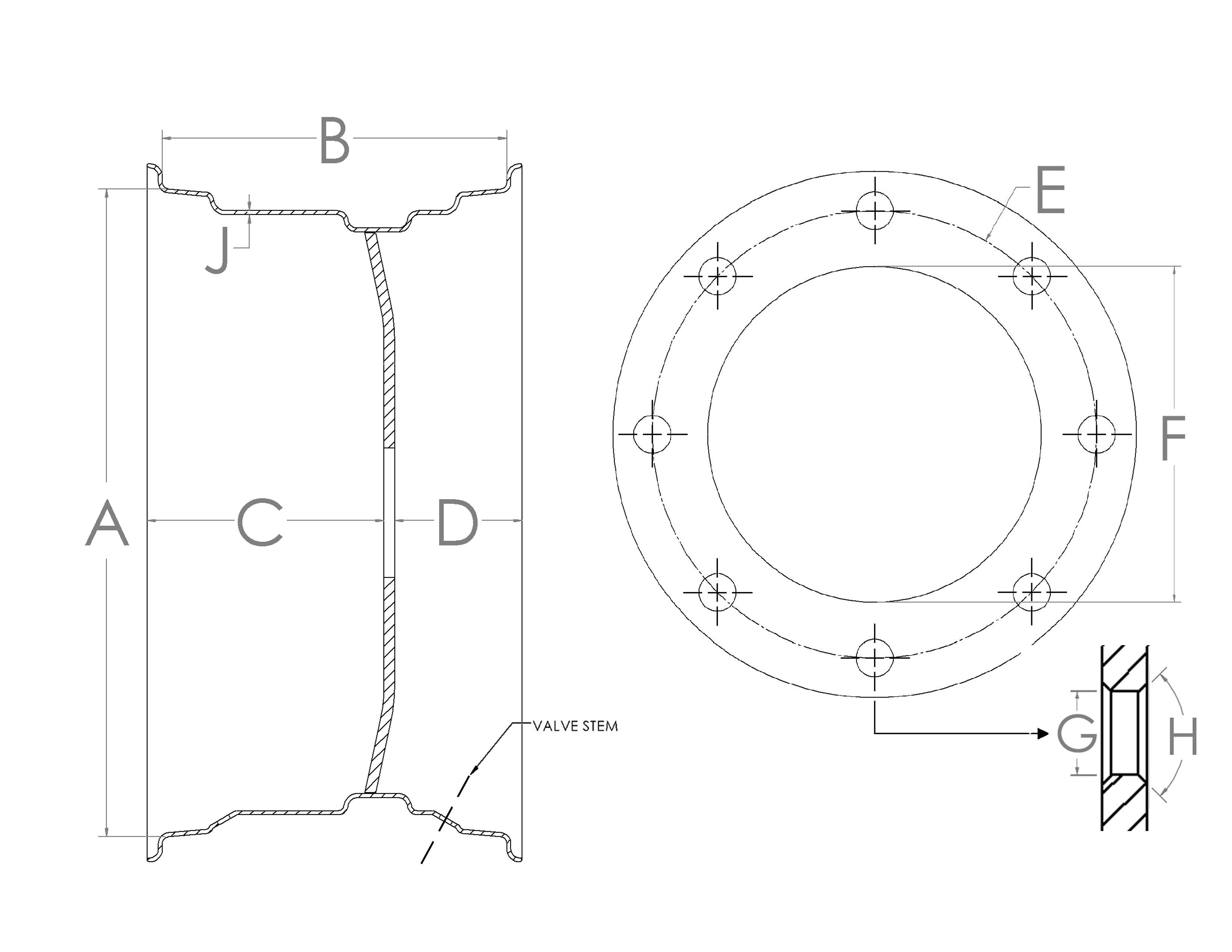

| (A) Dia. | 30" |
| (B) Width | 16" |
| Offset | 2 3/8" Positive |
| (C) Backside | 11" |
| (D) Frontside | 5 3/4" |
| Number Of Holes | 8 |
| (E) Bolt circle | 8 |
| (F) Pilot Hole | 6.03" |
| (G) Hole Size | 11/16" |
| (H) Countersink | 90 Deg. |
| (J) Rim | .187" |
| (I) Center | 1/2" |
