Product Information
| Sales# | N/A |
| Manufacture# | WPSD-NXHA10DQ-380230-0938 |
| Description | 23X38 XHD 10H AG(22MM)SD 38" SPACING |
| Wheel size | 23" X 38" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

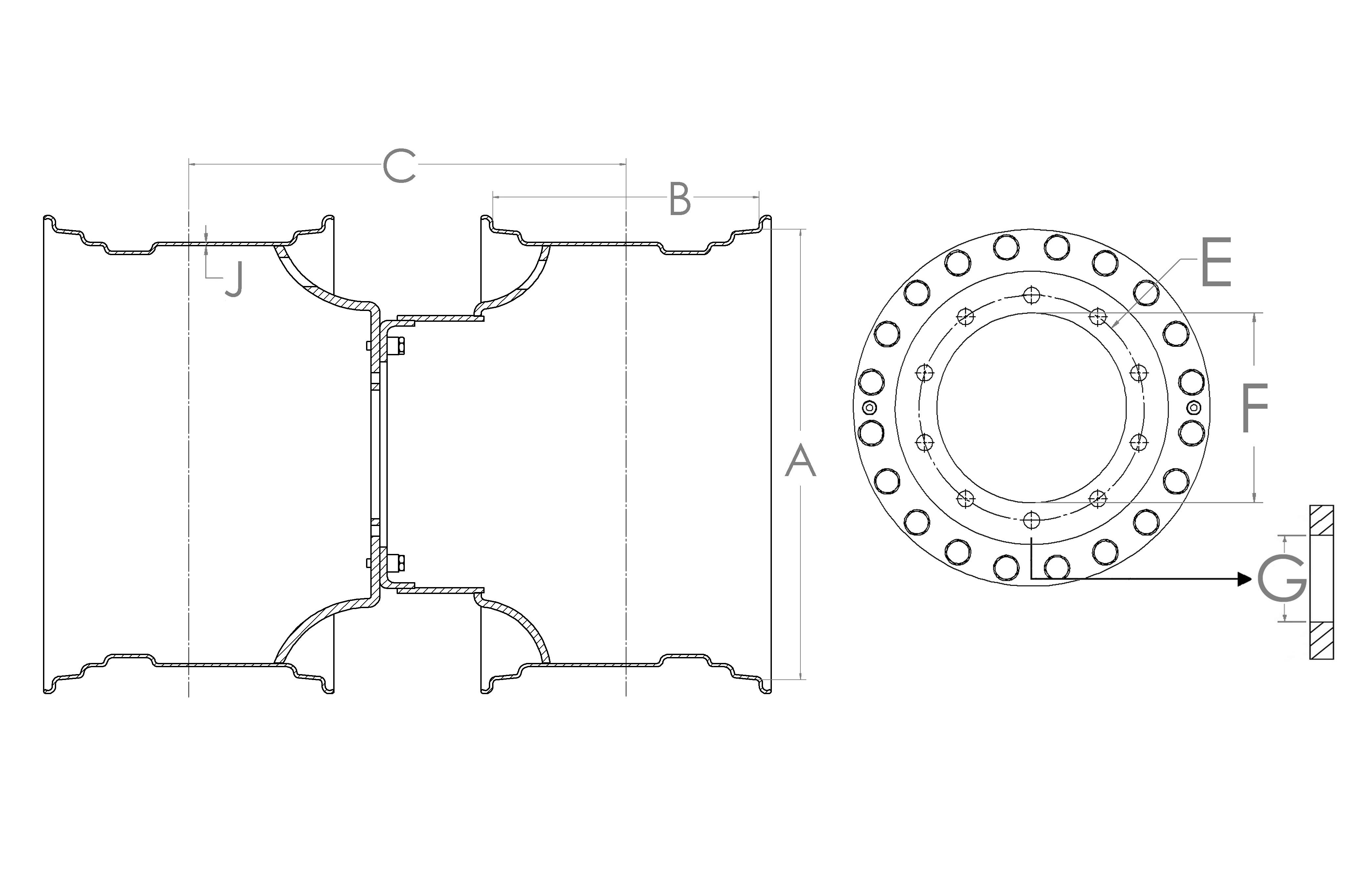

| (A) Dia. | 38" |
| (B) Width | 23" |
| Number Of Holes | 10 |
| (E) Bolt circle | 13.187" |
| (F) Pilot Hole | 11.08" |
| (G) Hole Size | .938" |
| (J) Rim | .281" |
| (C) Center | 38" |
| Bolts | 7/8-9 NC X 2-3/4" |
