Product Information
| Sales# | N/A |
| Manufacture# | WNSP-420230-12WQF3H-050 |

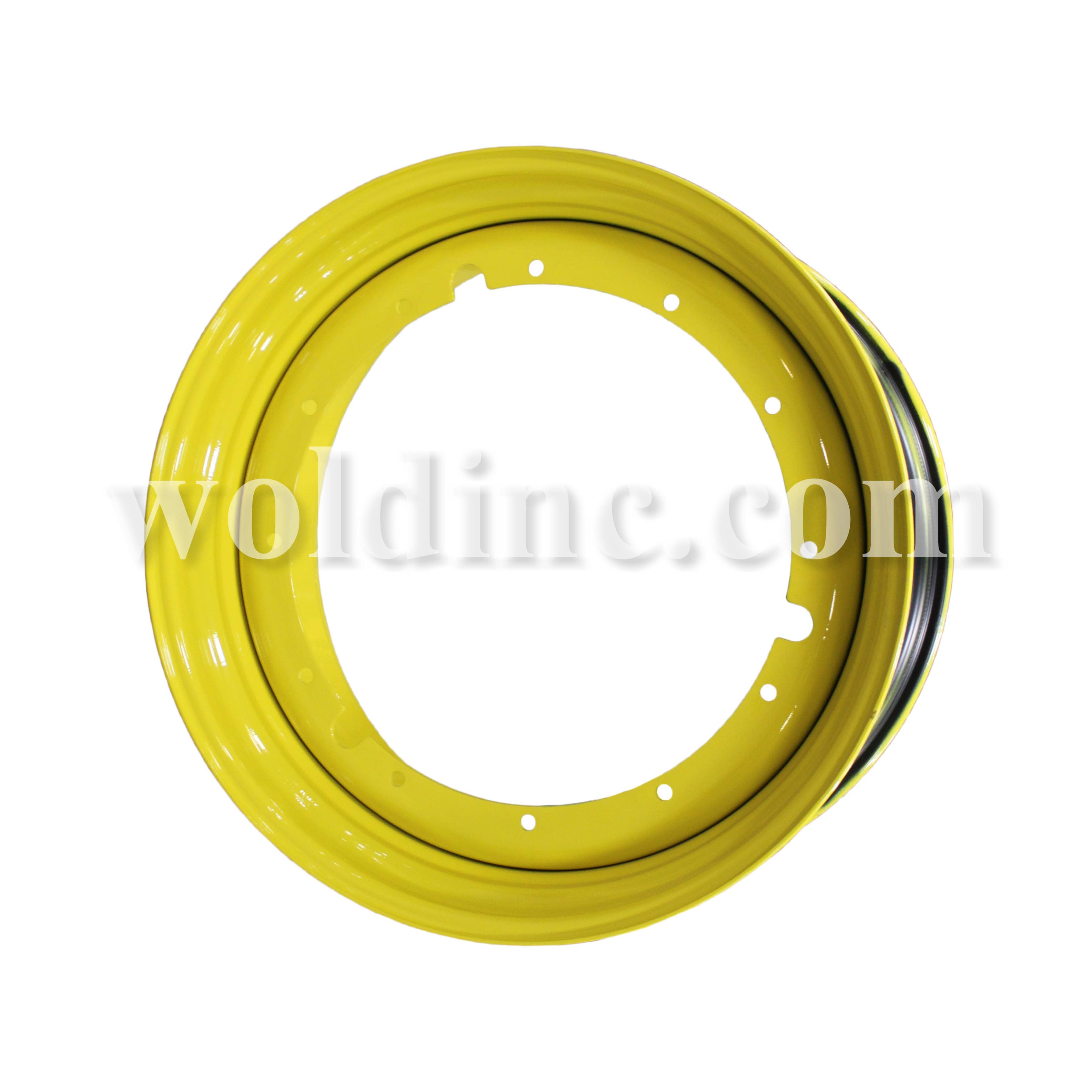

| Description | 23X42 3/8" FORMED 12H STUB DISC |
| Wheel size | 23" X 42" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

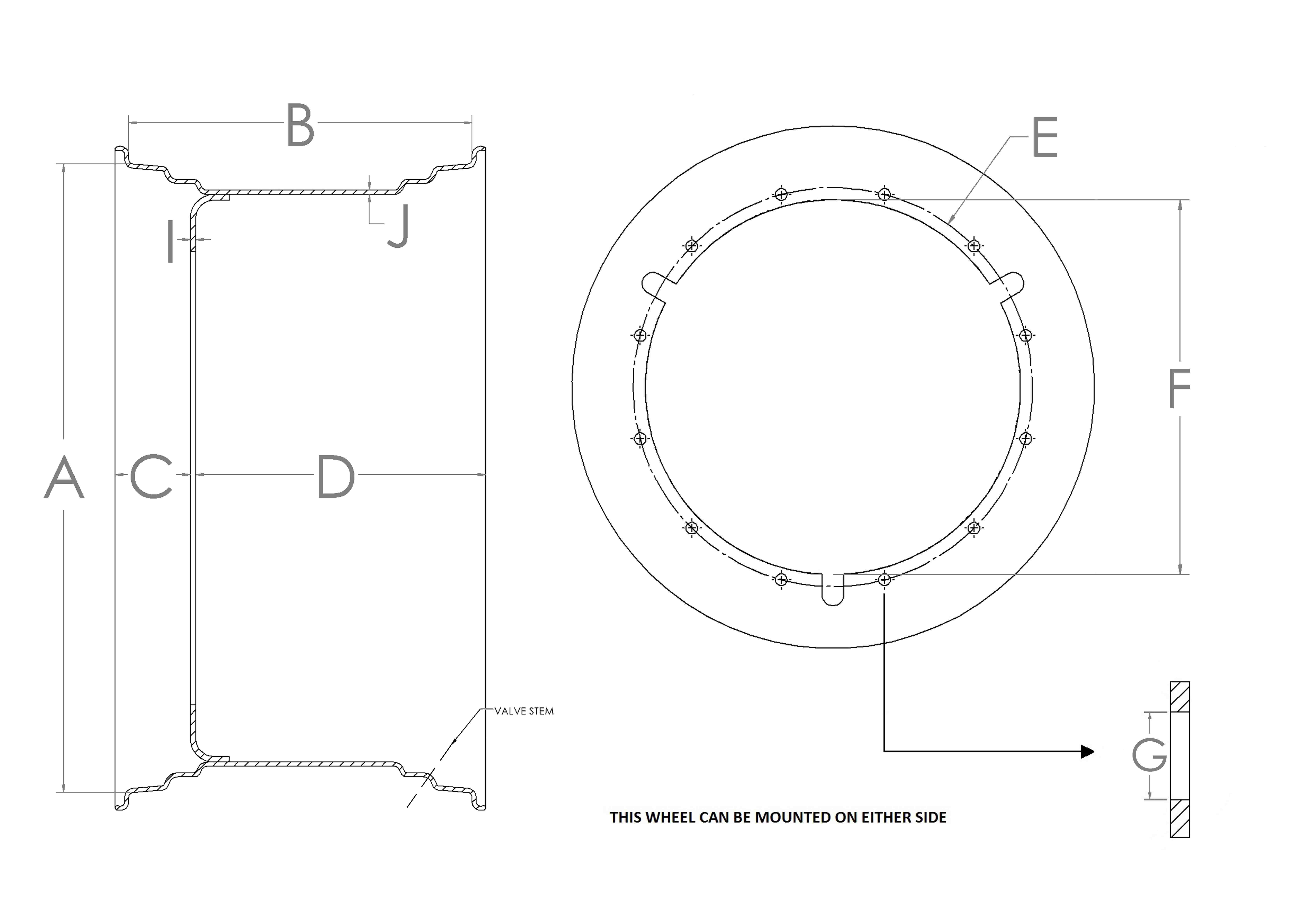

| (A) Dia. | 42" |
| (B) Width | 23" |
| Offset | 7 7/16" Negative |
| (C) Backside | 5" |
| (D) Frontside | 19 1/2" |
| Number Of Holes | 12 |
| (E) Bolt circle | 32.047" |
| (F) Pilot Hole | 30.09" |
| (G) Hole Size | .938" |
| (H) Countersink | No |
| (I) Center | 3/8" |
| (J) Rim | .276" |
