Product Information
| Sales# | N/A |
| Manufacture# | WPSP-540100H-YB10DPF-092 |
| Description | 10X54 3/4" SPUN 10H (BUBBLE) WHEEL |
| Wheel size | 10" X 54" |
| Unit Weight(LBS) | |
| OE Part Number: | |
| Standard Colors: |
|

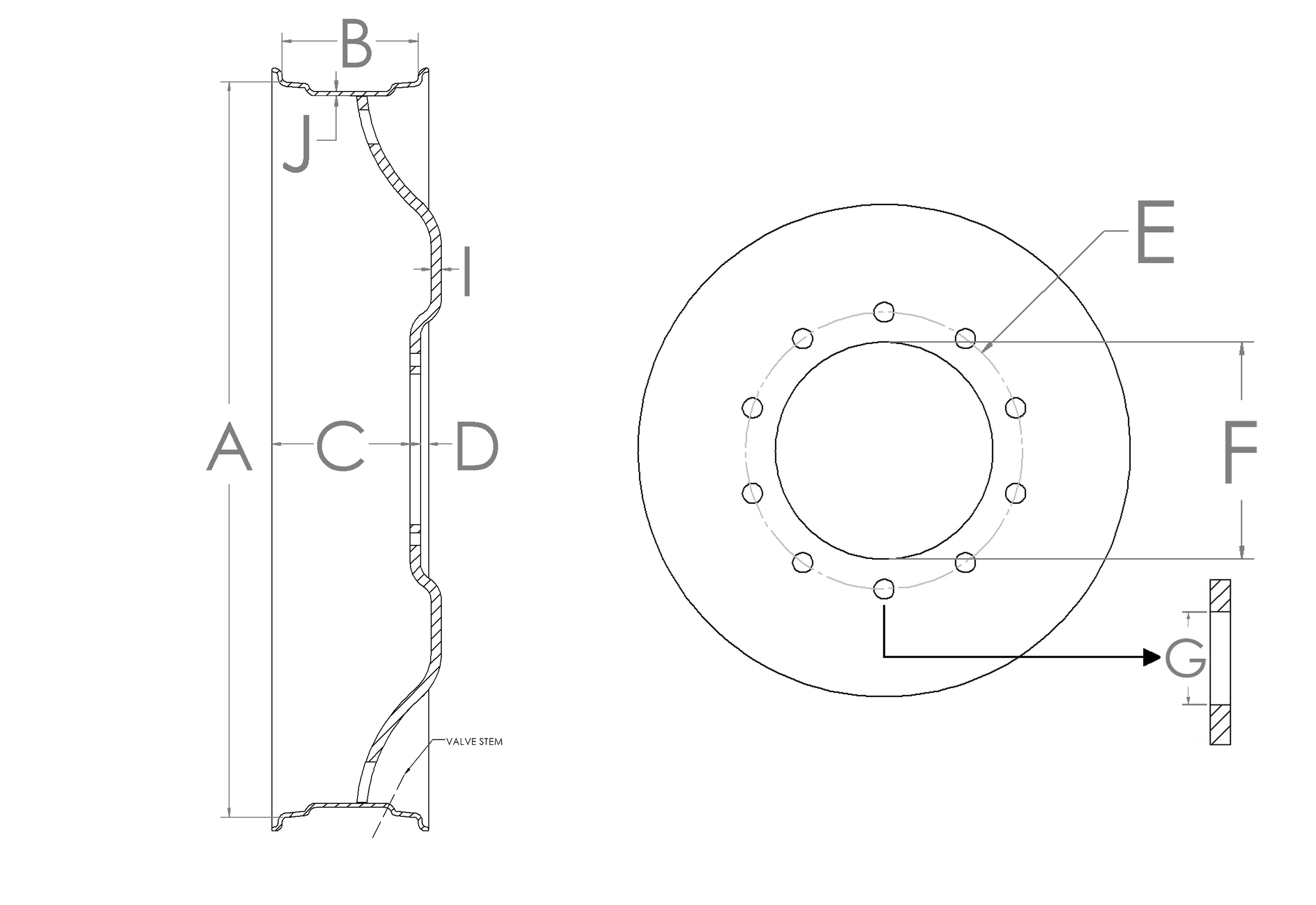

| (A) Dia. | 54" |
| (B) Width | 10" |
| Offset | 3 3/8" Positive |
| (C) Backside | 9 1/4" |
| (D) Frontside | 1 5/8" |
| Number Of Holes | 10 |
| (E) Bolt circle | 13.187" |
| (F) Pilot Hole | 11.08" |
| (G) Hole Size | .906" |
| Countersink | No |
| (I) Center | 3/4" |
| (J) Rim | .312" |
